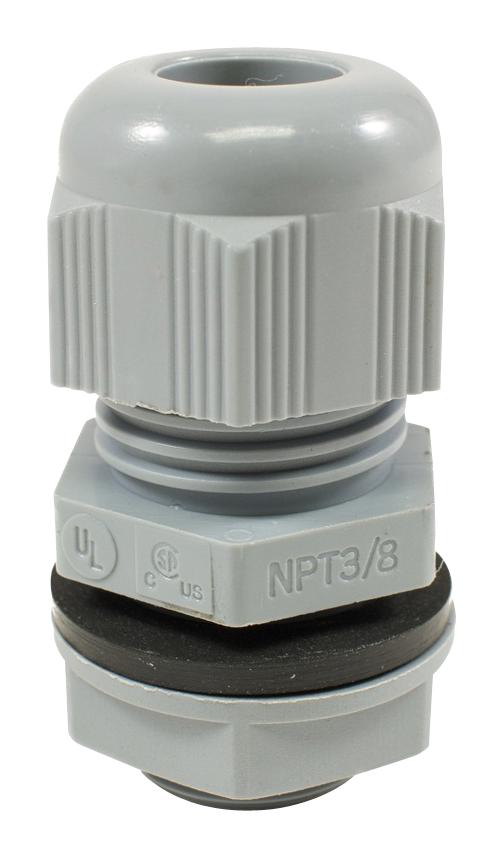

ALPHA WIRE PNC12SL080 Cable Gland
The PNC1/2 SL080 Fit® Standard Dome Design NPT Cable Gland ensures secure cable management and environmental sealing. Made of durable polyamide 6 in slate RAL 7001, it provides excellent resistance to dust, dirt, and water. Rated IP68 for 5 bar pressure over 30 minutes and compliant with IP66 standards, it features rubber seals for watertight integrity. UL listed 514 and CSA certified C22, it withstands temperatures from -20°C to +100°C permanently and -30°C to +150°C intermittently. Ideal for industrial automation, electrical installations, and renewable energy applications, supporting robust and reliable connections.
ALPHA WIRE PNC12SL080 Cable Gland Specifications:
- Material: Polyamide 6
- Color: Slate RAL 7001
- Protection Class: IP68 (5 bar, 30 min), IP66
- Flammability: UL 514, CSA C22.2
- Temperature Rating: -20°C to +100°C (permanent), -30°C to +150°C (intermittent)
- Thread Type: NPT according to ANSI B1.20.1
- Size: 1/2 inch
- Clamping Range: 6.0-12.0 mm (0.236-0.472 inch)
- Thread Length: 15 mm
- Outer Spanner Width: 24 mm
- Max. Height: 29.0 mm
- Certification: UL Listed 514, CSA Certified C22.2
- Packaging: 10 glands per package
Buy the Alpha Wire PNC12SL080 – Reliable Cable Gland for Industrial Applications
Purchase the PNC12SL080 cable gland online today for industrial automation and electrical installation projects. Designed with durable polyamide 6, it offers excellent environmental sealing with IP68 and IP66 ratings, ensuring reliable protection against dust, dirt, and water ingress. Certified UL and CSA, it operates effectively from -20°C to +150°C, suitable for demanding environments like renewable energy and industrial automation sectors. Easy to install with a 1/2 inch NPT thread, it ensures long-lasting, secure cable management—order now for quick, convenient online delivery.
Get Alpha Wire PNC12SL080 today—built for precision, durability, and reliable environmental sealing in industrial electrical systems.
Frequently Asked Questions
Where can I buy ALPHA WIRE PNC12SL080?
You can click on the BUY or RFQ button to purchase PNC12SL080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part PNC12SL080?
You can download the PNC12SL080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of PNC12SL080?
ALPHA WIRE
