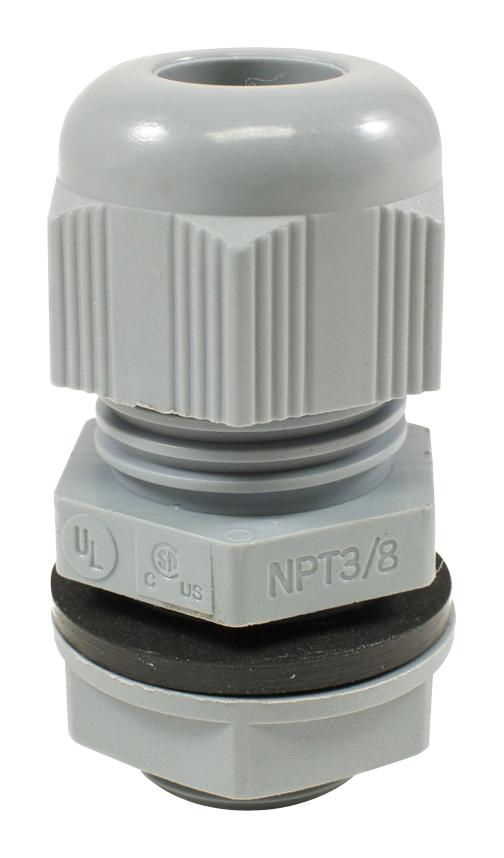

ALPHA WIRE PNC38SL080 Cable Gland
The PNC3/8 SL080 Fit® Standard Dome Design NPT Cable Gland is designed to provide reliable cable strain relief and environmental protection. Constructed from high-strength polyamide 6 in a slate color (RAL 7001), it offers excellent resistance to dust, dirt, and sand, and is watertight with an IP68 rating (5 bar, for 30 minutes). The gland includes a locknut and gasket for a complete installation solution, featuring robust rubber seals to prevent water ingress under pressure. It is rated for use in temperatures ranging from -20°C to +100°C (permanent) and -30°C to +150°C (intermittent). The product complies with UL94V-2 flammability standards and holds UL listing 514 and CSA certification C22. Perfect for industrial automation, electrical, and renewable energy applications.
ALPHA WIRE PNC38SL080 Cable Gland Specifications:
- Material: Polyamide 6
- Color: RAL 7001 Gray
- Protection Class: IP68, IP66
- Flammability: V2 (UL 94)
- Temperature Rating: -20°C to +100°C (permanent), -30°C to +150°C (intermittent)
- Thread Type: NPT according to ANSI B1.20.1
- Thread Sizes: 3/8 inch, 1/2 inch, 3/4 inch, 1 inch
- Clamping Range: 5.0-10.0 mm (3/8 inch), 6.0-12.0 mm (1/2 inch), 13.0-18.0 mm (3/4 inch), 18.0-25.0 mm (1 inch)
- Dimensions: Thread Length varies by size, maximum height up to 41 mm
- Certifications: UL 514 listed, CSA C22.2 certified
- Application: Suitable for electrical, automation, and renewable energy wiring
- Included Components: Locknut and gasket for secure sealing
- Environmental Resistance: Dustproof, Watertight, Resistant to dirt and sand
Buy the Alpha Wire Series PNC3/8 SL080 Cable Gland: PNC38SL080
Secure your electrical and industrial wiring with the high-strength PNC3/8 SL080 cable gland from Alpha Wire. Crafted from durable polyamide 6, it offers IP68 weatherproofing, suitable for harsh environments requiring dust and water ingress protection. Designed with easy installation features, including locknut and gasket, it withstands temperatures from -20°C to +100°C permanently, and up to 150°C intermittently. Suitable for automation, electrical systems, and renewable energy projects, this gland ensures reliable performance and long-term safety for your wiring applications. Buy online today to benefit from fast delivery and expert support.
Order your Alpha Wire Series PNC3/8 SL080 waterproof cable gland today and ensure your electrical installations are protected with high-quality sealing solutions.
