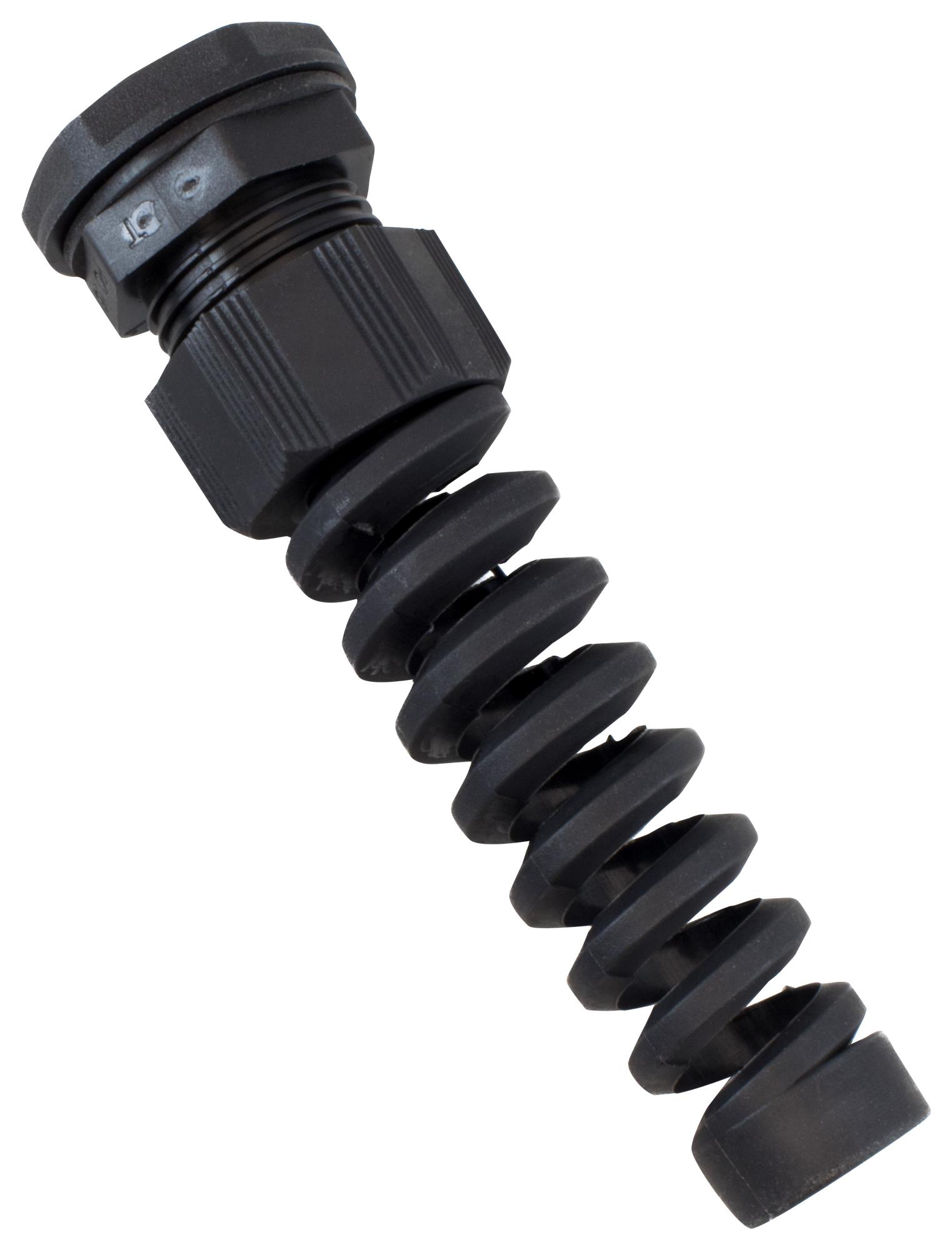

ALPHA WIRE PPS9BK080 Cable Gland
The PPS9 BK080 Alpha Fit® Flexible Spiral Design PG Cable Gland offers dependable cable strain relief and environmental protection with a rugged polyamide 6 body. Designed for industrial automation, electrical, and renewable energy applications, it ensures excellent sealing against water, dust, and debris through rubber seals conforming to IP68 and IP66 standards. Capable of enduring temperatures from -20°C to +100°C permanently and -30°C to +150°C intermittently, it is UL listed (514) and CSA certified (C22.2). The gland includes a locknut and gasket for a secure, complete sealing solution in harsh environments.
ALPHA WIRE PPS9BK080 Cable Gland Specifications:
- Material: Polyamide 6 (Body and Cap)
- Seal Material: Chloroprene Rubber
- Color: Black, RAL 7001
- Protection Class: IP68 5 Bar, 30 min; IP66
- Flammability: V2 UL94
- Temperature Rating: -20°C to +100°C (permanent), -30°C to +150°C (intermittent)
- Thread Type: PG according to DIN 40430
- Size Range: PG9 (40-80 mm), Thread Lengths 80 mm, 152 mm, 186 mm, 203 mm, 225 mm
- Max Clamping Range: 40-80 mm, 50-100 mm, 60-120 mm, 100-140 mm
- Certifications: UL 514, CSA C22.2
- Includes: Locknut and gasket for sealing
- Quantity: 10 glands per package
Buy the Buy Alpha Wire Cable Gland Part Number PPS9BK080 Online
Purchase the Alpha Fit® PPS9BK080 cable gland online today for superior cable strain relief and environmental protection in industrial, electrical, or renewable energy projects. Crafted from high-strength polyamide 6, this gland features rubber seals conforming to IP68 and IP66 standards, capable of withstanding harsh conditions with a temperature range from -20°C to +100°C permanently and -30°C to +150°C intermittently. Certified by UL (514) and CSA (C22.2), it includes a locknut and gasket for a complete sealing solution, ensuring secure and durable performance in critical applications.
Order your Alpha Series PPS9BK080 flexible PG cable gland today and ensure reliable cable management and environmental sealing for demanding industrial environments.
