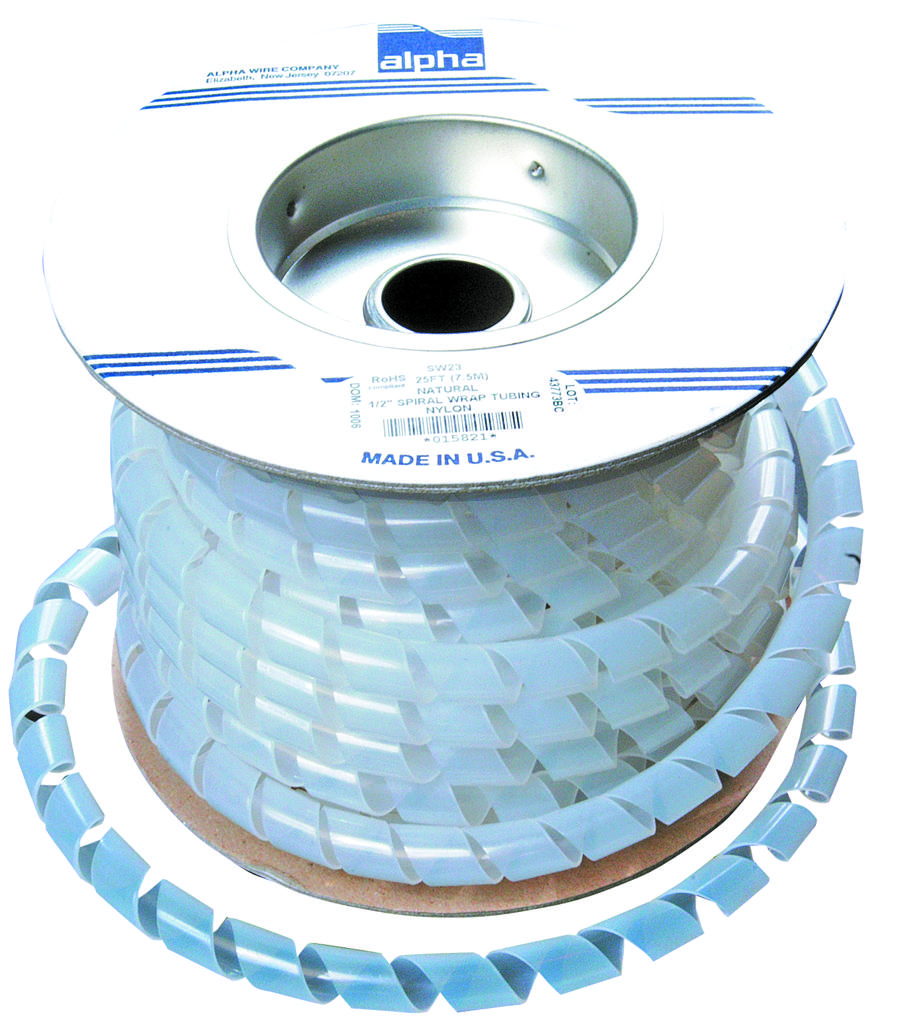

ALPHA WIRE SW2NA008 Spiral Wrap Tubing
The SW2 NA008 is a natural spiral wrap tubing made from zero halogen polyethylene, ideal for indoor use in wire harnessing, cabling, and bundling. It offers excellent abrasion resistance, remains flexible around sharp edges, and can be easily applied without tools. The semi-rigid tubing, with a right-hand pitch, conforms tightly to wires and allows breakouts. With a tensile strength of 1800 PSI and a temperature range from -66°C to 88°C, it is suitable for maintenance, military, aerospace, and industrial applications requiring durable, flexible insulation and protection.
ALPHA WIRE SW2NA008 Spiral Wrap Tubing Specifications:
- Material: Polyethylene
- Color: Natural
- Outside Diameter: 0.250" +/- 0.020"
- Inside Diameter: 0.160" Nominal
- Wall Thickness: 0.045" Nominal
- Pitch: 0.375" Nominal
- Pitch Direction: Right Hand
- Applicable Standards: ASTM 1248-65T Type 1 Class A Grade 3, DSSC CID A-A59602 Type 1 Class 1, MIL-I-631D Type A Form U, MIL-P-21922B
- Temperature Rating: -66°C to 88°C
- Tensile Strength: 1800 PSI
- Flamability: Not Rated
- Environmental Compliance: RoHS2 and REACH compliant
Buy the Buy Alpha Wire Spiral Wrap Part Number SW2NA008 Online
Order Alpha Wire spiral wrap tubing SW2NA008 online for your wire harnessing and cabling needs. Made from zero halogen polyethylene, it offers excellent abrasion resistance, flexibility, and ease of installation. Its continuous spiral design provides a tight fit around wires, maintains flexibility at extreme temperatures, and conforms well to complex bundles. Ideal for industrial, military, aerospace, and maintenance applications, this durable tubing ensures long-lasting protection against mechanical damage and environmental factors. Purchase now for reliable wire management solutions.
Get Alpha Wire spiral wrap tubing SW2NA008 today—designed for high abrasion resistance, flexibility, and reliable wire protection in demanding environments.
