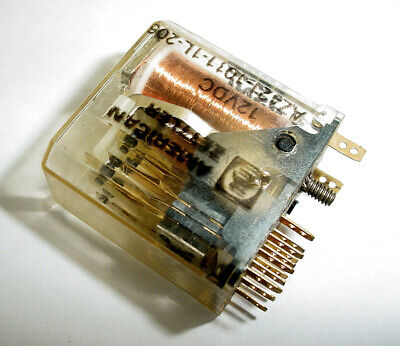

AMERICAN ZETTLER AZ42110111T Miniature General Purpose Relay
The AMERICAN ZETTLER AZ421-1011-1T is a miniature general-purpose relay designed for high reliability in various industrial applications. Its rugged construction ensures a long operational life, exceeding 100 million operations. The relay features DC coils up to 115V, with options for sensitive and voltage-sensitive coils to meet diverse circuit requirements. Available with various contact configurations and terminal options, it's suitable for printed circuit or solder/plug-in applications. The balanced spring-held armature allows dependable operation in any position, making it ideal for automated systems and environments where consistent performance is critical.
AMERICAN ZETTLER AZ42110111T Miniature General Purpose Relay Specifications:
- Rugged construction: High reliability
- Life expectancy: Greater than 100 million operations
- DC coils: Up to 115 V
- Power consumption: As low as 25 mW per pole
- Coil types: Current sensitive and voltage sensitive
- Pull force: Provided by round core and large coil volume
- Number of poles: Up to 6 poles
- Contact ratings: Dry circuit to 5 Amp
- Terminals: Printed circuit or solder/plug-in
- Armature: Balanced spring-held
- Sealed version: Available (2 and 4 pole)
- UL certification: E43203
- VDE certification: 0110 Gr. A
- Initial contact resistance: < 50 milliohms
- Typical capacitance (contact to contact): 2 pF
- Typical capacitance (contact to coil): 2 pF
- Typical capacitance (contact to frame): 30 pF
- Bounce (at 10 mA contact current): 3 ms
- Dielectric strength (contact to coil): 1500 Vrms
- Dielectric strength (all other points): 1000 Vrms
- Insulation resistance: 1000 megohms min.
- Dropout voltage: Greater than 5% of nominal coil voltage
- Operating temperature (2 and 4 pole): -55°C to 80°C
- Operating temperature (6 pole): -55°C to 65°C
- Operating temperature (sensitive): -55°C to 95°C
- Storage temperature: -55°C to 105°C
- Vibration resistance: 0.062" DA at 5–55 Hz
- Shock resistance: 20 g
- Enclosure material: Polycarbonate
- Plug-in terminals: Gold or tin plated copper alloy
- PC terminals: Tin plated copper alloy
- Max. solder temperature: 270°C
- Max. solder time: 5 seconds
- Max. solvent temperature: 80°C
- Max. immersion time: 30 seconds
- Weight: 23 to 35 grams
