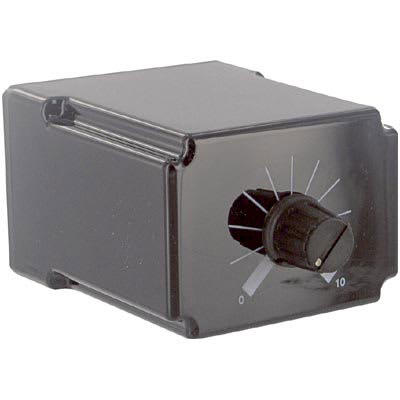

AMPERITE 120A660SDOD Delay-on-Dropout Relay
This time delay relay features a delay-on-dropout function with an input voltage of 110/120 VAC. It has a timing range from 0.6 to 60 seconds and is designed for plug-in mounting with an 8-pin octal configuration. The relay includes a 2C DPDT contact configuration and can handle up to 4 amps of output current. It offers precise timing adjustment with a knob potentiometer, and its robust construction supports a maximum switching power of 1000 VA. Suitable for automation and control applications requiring reliable delay functions.
AMPERITE 120A660SDOD Delay-on-Dropout Relay Specifications:
- Contact Configuration: 2C DPDT (Double-Pole Double-Throw)
- Contact Material: Gold Clad Silver Alloy
- Maximum Switching Power: 1000 VA
- Maximum Switching Voltage: 250V AC, 48V DC
- Maximum Switching Current: 4 Amperes
- Nominal Switching Capacity: 4A 250V AC, 3A 30V DC
- UL CSA Ratings: 4A 1/20 HP 125, 250V AC, 3A 30V DC
- Expected Life: 100 Million mechanical operations; 100,000 electrical operations at 4A 250V AC
- Operating Temperature Range: -40°C to +65°C
- Physical Terminations: 8 pin Octal or 11 pin spade terminals
- Enclosure Material: Black plastic case
- Dimensions: Approximate outline 7mm x 4mm
- Timing Range: 0.6 to 60 seconds, adjustable via knob potentiometer
- Timing Tolerance: +5% fixed, -0 to +25% adjustable
- Operating Voltage: 110/120 VAC; other voltages available
- Input Power: 2 VA at 110/120 VAC
- Dielectric Strength: 750V RMS between open contacts, 1000V RMS between adjacent contacts
- Environmental Range: -40°C to +65°C
Buy the Amperite Series DOD Delay-on-Dropout Relay: 120A660SDOD
Purchase the reliable delay-on-dropout relay online today. Designed for automation, it features adjustable timing from 0.6 to 60 seconds, handling up to 4A. Its plug-in octal mounting and gold-clad contacts ensure durability and ease of installation. Perfect for controlling circuits requiring precise delay functions, this relay supports wide voltage ranges including 110/120 VAC. Order now for high-quality performance, long operational life, and seamless integration into your automation or control systems.
Get Amperite DOD Series 120A660SDOD delay-on-dropout relay today—built for precision timing and long-lasting durability.
Frequently Asked Questions
Where can I buy AMPERITE 120A660SDOD?
You can click on the BUY or RFQ button to purchase 120A660SDOD from an authorized AMPERITE distributor.
How do I troubleshoot issues or seek technical support for part 120A660SDOD?
You can download the 120A660SDOD datasheet or visit the AMPERITE website for support.
Who is the manufacturer of 120A660SDOD?
AMPERITE
