Amphenol Aerospace 16514 Miniaturized Standard Connector
Amphenol 67 and 165 Series connectors are miniaturized, environmentally resistant cylindrical connectors designed for light to medium weight applications. They offer a quick, positive, stainless steel bayonet coupling and operate effectively across a wide temperature range (-67°F to +257°F). Available with various customer options including unitized back end grommets, potting, sealing clamps, and vise action strain relief, these connectors are suitable for diverse industrial applications. Constructed with high-grade aluminum and gold-plated contacts, they provide high arc and insulation resistance, making them a reliable choice for demanding environments.
Amphenol Aerospace 16514 Miniaturized Standard Connector Specifications:
- Voltage Rating (Sea Level, Unsealed): 2000-2300 V-RMS
- Voltage Rating (Sea Level, Sealed): 2500-3000 V-RMS
- Voltage Rating (70,000 ft, Unsealed): 500-600 V-RMS
- Voltage Rating (70,000 ft, Sealed): 2500-3000 V-RMS
- Mechanical Spacing (Nominal): 0.034-0.046 inch
- Flashover Voltage (DC): 1500-1800 V-RMS
- Recommended Working Voltage (DC): 500-600 V-RMS
- Weight: Approximately half the weight of standard cylindricals
- Operating Temperatures: -67°F to +257°F
- Vibration Resistance: 10 to 2,000 cps at 20Gs
- Moisture Resistance: Exceeds MIL-C-5015 requirements with potting
- UL Approval: E115497
- Shell Material: High grade aluminum with gray anodize finish
- Contact Material: Copper alloy gold over nickel plate
- Insert Material: Diallyl phthalate

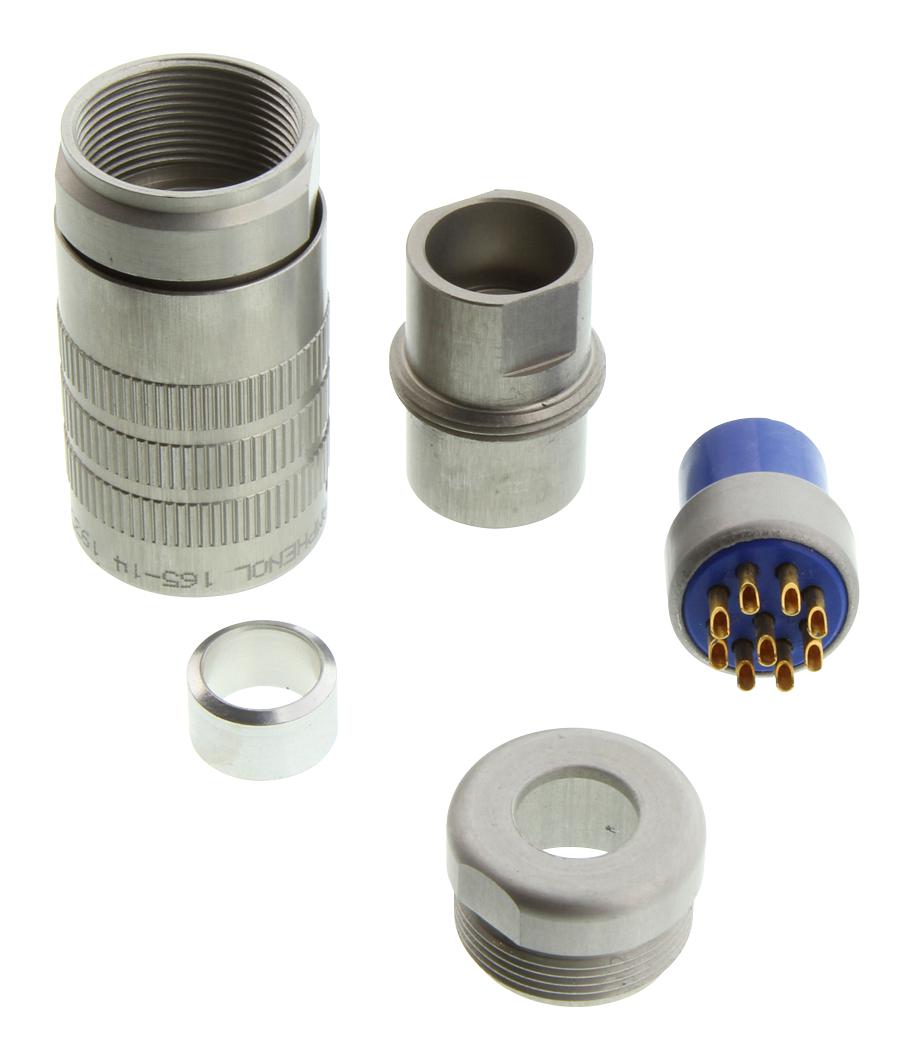

Buy the 165-14 AMPHENOL AEROSPACE Miniaturized Standard Connector | myMectronic
