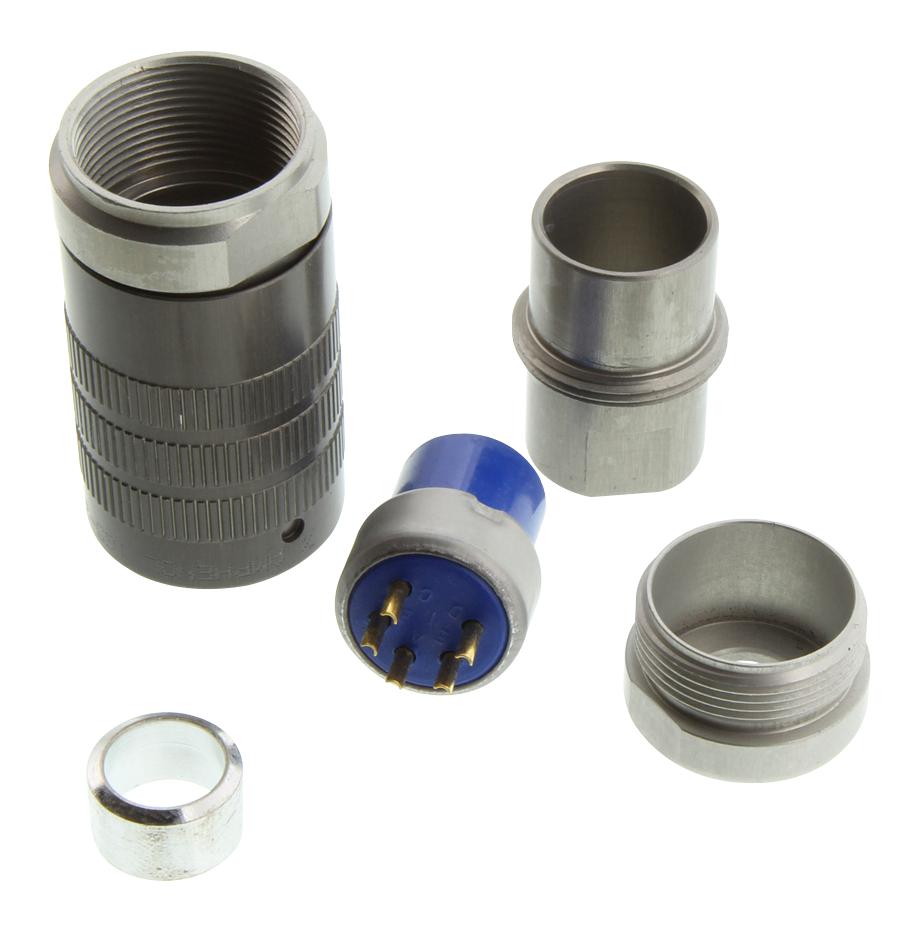

Amphenol Aerospace 16534 Miniaturized Standard Connector
Amphenol 67 and 165 Series connectors are miniaturized, environmentally resistant cylindrical connectors designed for light to medium weight applications. They offer a quick, positive, stainless steel bayonet coupling and operate effectively from -67°F to +257°F. Available in five shell styles and seventeen insert configurations, these connectors are suitable for a wide range of applications requiring a durable, sealed connection. Shell components are fabricated from high-grade aluminum with a gray anodize finish, while contacts are copper alloy with gold over nickel plate. Inserts are made of diallyl phthalate, providing high arc and insulation resistance.
Amphenol Aerospace 16534 Miniaturized Standard Connector Specifications:
- Voltage Rating: 2000-3000 V-RMS (Sea Level)
- Mechanical Spacing: 0.034-0.046 inch
- Flashover Voltage DC: 500-600 V-RMS (70,000 ft)
- Flashover Voltage AC: 375-450 V-RMS (70,000 ft)
- Recommended Working Voltage DC: 125-150 V-RMS (70,000 ft)
- Recommended Working Voltage AC: 175-210 V-RMS (70,000 ft)
- Weight: Approximately half the weight of standard cylindricals
- Operating Temperatures: -67°F to +257°F
- Vibration Resistance: 10 to 2,000 cps at 20Gs
- Moisture Resistance: Exceeds MIL-C-5015 requirements with potting
- UL Approval: E115497
- Shell Material: High-grade aluminum with gray anodize finish
- Contact Material: Copper alloy gold over nickel plate
- Insert Material: Diallyl phthalate
Buy the 165-34 AMPHENOL AEROSPACE Miniaturized Standard Connector | myMectronic
Securely purchase the Amphenol 165-34 connector online for reliable performance and fast delivery.
Buy Now
Frequently Asked Questions
Where can I buy Amphenol Aerospace 16534?
You can click on the BUY or RFQ button to purchase 16534 from an authorized Amphenol Aerospace distributor.
How do I troubleshoot issues or seek technical support for part 16534?
You can download the 16534 datasheet or visit the Amphenol Aerospace website for support.
Who is the manufacturer of 16534?
Amphenol Aerospace
