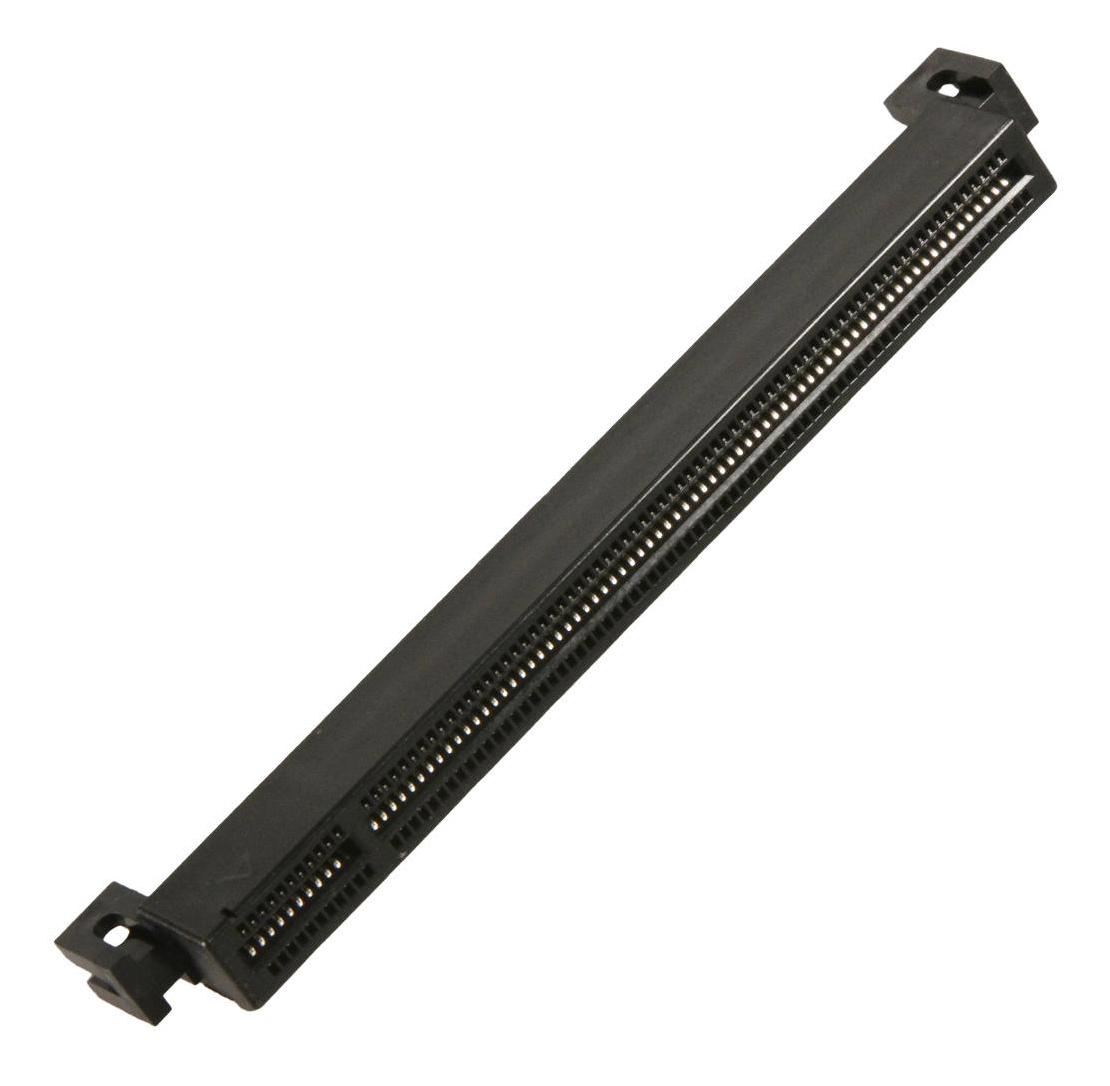

AMPHENOL COMMUNICATIONS SOLUTIONS 1002502610003TLF PCI Express Card Edge Connector
The connector is a 164-position, two-row PCI Express straddle-mount card edge connector with a 1mm pitch, featuring gold-plated copper alloy contacts. It is designed for vertical insertion in desktop PCs, workstations, and servers, supporting all PCI Express generations. The straddle-mount design includes mounting ears for added mechanical stability and molded posts for precise alignment on the PCB. The base range accommodates 1, 4, 8, or 16 PCI Express links to meet varying bandwidth needs. Built with a high-temperature thermoplastic housing and copper alloy board locks, it ensures durability with a minimum of 50 mating cycles. It has a UL94V-0 flammability rating and a minimum current rating of 1.1A per pin for power and ground contacts.
AMPHENOL COMMUNICATIONS SOLUTIONS 1002502610003TLF PCI Express Card Edge Connector Specifications:
- Contact Material: Copper alloy
- Contact Finish: Gold over nickel
- Housing Material: High-temperature thermoplastic (UL94V-0), black or off-white
- Solder Area Finish: Tin over nickel or tin-lead over nickel
- Board Locks: Copper alloy with tin over nickel
- Number of Positions: 164
- Pitch: 1mm
- Mounting: Straddle-mount with molded posts and mounting ears
- Operating Temperature: Up to 105°C
- Contact Resistance: 30mΩ max initially
- Current Rating: 1.1A min. per pin for power and ground contacts
- Durability: 50 mating cycles minimum
- Environmental Compliance: UL and CSA approvals
Buy the FCE 10025026 – Reliable PCI Express Card Edge Connectors for Industrial Applications
Enhance your computer connectivity with the high-quality PCI Express Card Edge Connector, supporting all PCIe generations. Its durable design includes gold-plated contacts, a high-temperature thermoplastic housing, and precise alignment features. Suitable for desktops, servers, and workstations, this connector ensures reliable high-speed data transfer, mechanical stability, and long service life with a minimum of 50 mating cycles. Easy to install with straddle-mounting capability, it's ideal for demanding industrial, commercial, and professional applications requiring robust and efficient PCIe connections.
Buy FCI 10025026 PCI Express Card Edge Connector now and ensure high-speed performance and mechanical stability for your desktop, server, or workstation.
