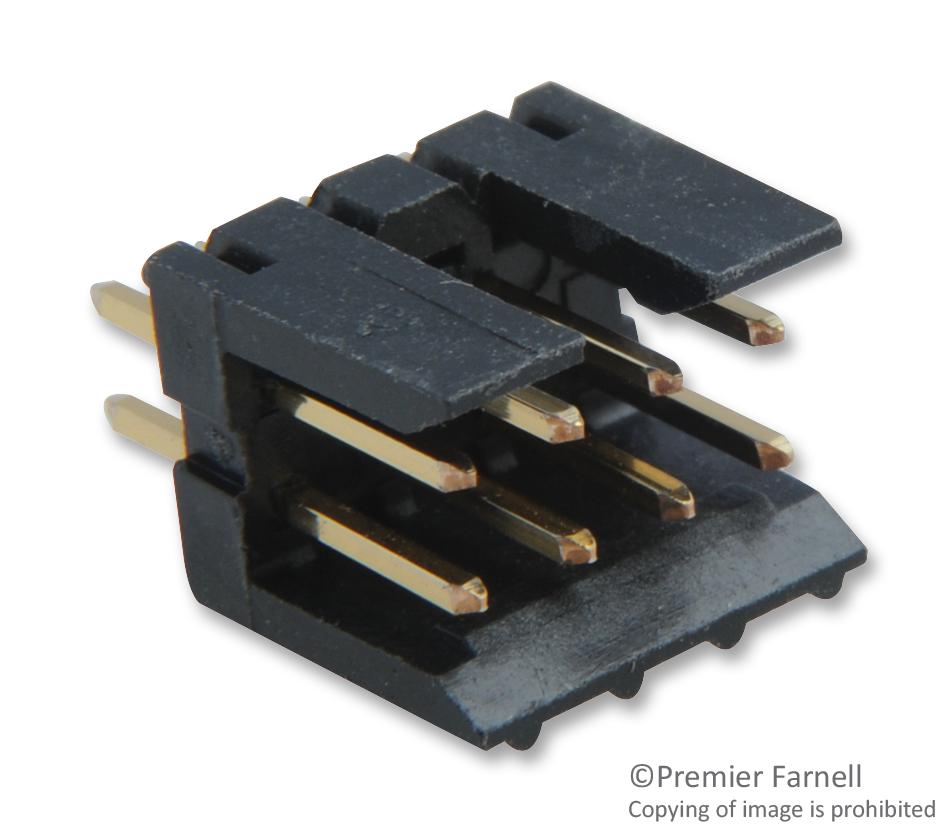

AMPHENOL COMMUNICATIONS SOLUTIONS 69168108HLF Wire-to-Board Connector System
This high-reliability wire-to-board connector system is designed for industrial, medical, automotive, and communication applications. It features dual-metal PV receptacle contacts that maintain contact pressure through 1000 mating cycles, with a brass body and beryllium copper spring. The system supports various configurations, including single and double rows with polarized MINI-LATCH housings, offering optional plating like gold or pure tin. Its robust construction with high insulation resistance, UL94V-0 housing material, and temperature range of -40°C to +105°C ensures durable performance in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 69168108HLF Wire-to-Board Connector System Specifications:
- Contact material: Brass body and beryllium copper spring
- Housing material: Modified polyphenylene oxide UL94V-0; Glass filled nylon UL94V-0 for headers
- Plating options: Gold, lead-free pure tin over nickel, or palladium-nickel with gold flash
- Electrical rating: 3.0A per circuit with 32 AWG wire, withstand voltage 1000V RMS
- Insulation resistance: >10000MQ (wire connector), >5000MQ (header)
- Contact resistance: <2mQ
- Mating force: 450g (high force spring), 100g (ultra-high force spring)
- Un-mating force: 75g (high force spring), 175g (ultra-high force spring)
- Durability: 1000 cycles
- Temperature range: -40°C to +105°C
- Wire range: Max 1.52mm diameter, supports 18-36 AWG wires
- Certifications: URE66906, CSALR46923
Buy the FCI PV® – Reliable Wire-to-Board Connectors for Industrial Applications
Enhance your electronic assemblies with the FCI PV wire-to-board connector system, offering high reliability, robust construction, and versatile configurations. This system features dual-metal contacts, secure MINI-LATCH housings, and optional plating like gold or pure tin for excellent corrosion resistance. Support for various wire gauges up to 36 AWG and a temperature range from -40°C to +105°C makes it ideal for industrial, medical, automotive, and communication applications. Easy to assemble with specialized tooling, it ensures long-lasting performance and secure connections in critical systems.
Get FCI PV® 69168108HLF today—built for high durability and reliable electrical connections in demanding environments.
