AMPHENOL COMMUNICATIONS SOLUTIONS 10044314101LF Mechanical Guidance Modules
Mechanical guidance modules ensure precise connector alignment for backplane, coplanar, or orthogonal midplane applications in Hard Metric environments. Made from zinc alloy with zinc yellow chromate finish and nickel ESD contact, these modules correct misalignment up to ±3.5mm for pin-style and ±2.9mm for blade-style variants. Designed to support right angle and coplanar board layouts, they feature rugged metal components, 75mm guide blades for maximum load capacity, and facilitate efficient airflow and grounding. Certified RoHS compliant and suitable for various packaging methods, these guidance modules enhance mechanical robustness and flexibility in high-density electronic assemblies.
AMPHENOL COMMUNICATIONS SOLUTIONS 10044314101LF Mechanical Guidance Modules Specifications:
- Material: Zinc alloy with zinc yellow chromate finish
- ESD Contact: Nickel
- Misalignment correction: Pin-style ±3.5mm, Blade-style ±2.9mm
- Guidance clearance: Pin-style 0.35mm, Blade-style 0.25-0.30mm
- Application specification: GS-20-045
- Certifications: RoHS compliant, Lead-free
- Packaging: Trays (guide pins), Tubes (guide modules)
- Design: Supports right angle and coplanar applications, rugged metal components
- Guide blades: 75mm length for maximum weight support
- Thread options: External and internal threads, tailored to backplane thickness
- Compatibility: Suitable for airMax, ZipLine modules, different pitch configurations

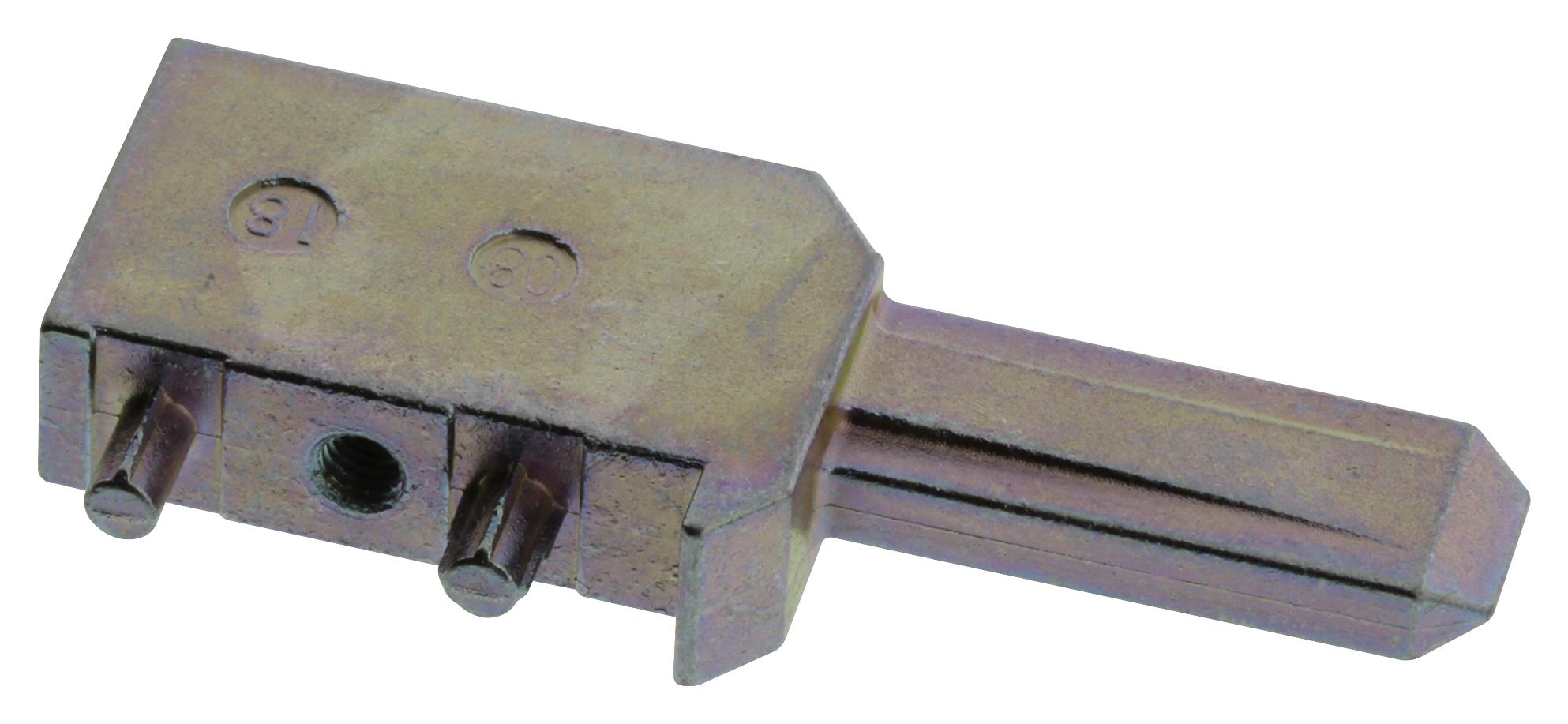

Buy the Buy FCI Mechanical Guidance Modules Part Number 10044314101LF Online
Purchase FCI Mechanical Guidance Modules Part Number 10044314101LF online today to ensure precise connector alignment and robust mechanical support in backplane, midplane, and coplanar applications. Engineered with zinc alloy for durability and featuring both pin-style and blade-style options, these modules correct misalignment up to ±3.5mm and ±2.9mm respectively. With RoHS compliance and versatile packaging like trays and tubes, they provide flexible installation, maximize airflow, ground connection, and contribute to high-density electronic systems with enhanced reliability.
Order your FCI Mechanical Guidance Modules Part Number 10044314101LF today and enhance your backplane assemblies with reliable, precise guidance components.
