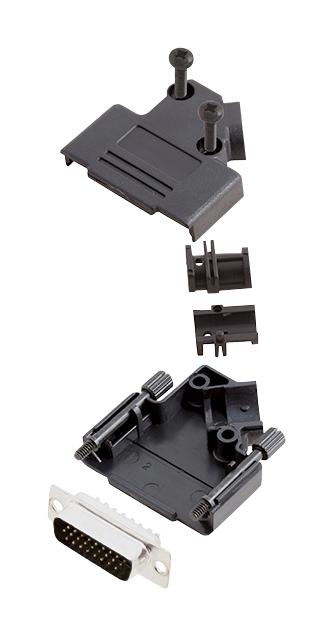

AMPHENOL COMMUNICATIONS SOLUTIONS L17D45PKP15L717HDA26P High Density D-Sub Solder Cup
The Plastic Hoods 45PK-P+High Density D-Sub Solder Cup combines high-quality UL 94 V-0 plastic with a durable steel shell featuring gold-plated contacts for superior conductivity. It accommodates cable O.D. up to 11.5mm and operates from -55°C to +110°C. The solder cup contacts are copper alloy with gold flash over nickel, rated for 3A and withstand voltage of over 1000V RMS. Suitable for secure, re-openable connections with strain relief inserts, available in multiple configurations for versatile industrial applications.
AMPHENOL COMMUNICATIONS SOLUTIONS L17D45PKP15L717HDA26P High Density D-Sub Solder Cup Specifications:
- Material: UL 94 V-0 plastic for hood, steel shell, copper alloy contacts
- Operating Temperature: -55°C to +110°C for hood, -55°C to +85°C for solder cup
- Cable Entry: Side, up to 11.5mm O.D.
- Color: Black
- Contact Plating: Gold flash over Nickel
- Withstanding Voltage: >1000V RMS to 50 Hz for 1 minute
- Current Rating: 3A
- Insulator Resistance: >5000MQ
- Strain relief: Inserts ensure secure termination
- Available sizes: HD 15, HD 26, HD 44, HD 62
- Connection Type: Solder cup, re-openable design, class 3 pins
Buy the Amphenol Series High Density D-Sub Solder Cup: L17D45PKP15L717HDA26P
Purchase your High Density D-Sub Solder Cup connector from Amphenol online today. This high-performance component features UL 94 V-0 plastic housing, steel shell, and gold-plated copper alloy contacts designed for durability and excellent electrical performance. With a wide operating temperature range from -55°C to +110°C, it offers secure, re-openable connections with strain relief inserts for added reliability. Available in multiple sizes, this connector is ideal for industrial, automation, and control applications where high voltage resistance and long-term stability are crucial.
Order your Amphenol Series High Density D-Sub Solder Cup L17D45PKP15L717HDA26P today and secure reliable, professional-grade connections for your projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS L17D45PKP15L717HDA26P?
You can click on the BUY or RFQ button to purchase L17D45PKP15L717HDA26P from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part L17D45PKP15L717HDA26P?
You can download the L17D45PKP15L717HDA26P datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of L17D45PKP15L717HDA26P?
AMPHENOL COMMUNICATIONS SOLUTIONS
