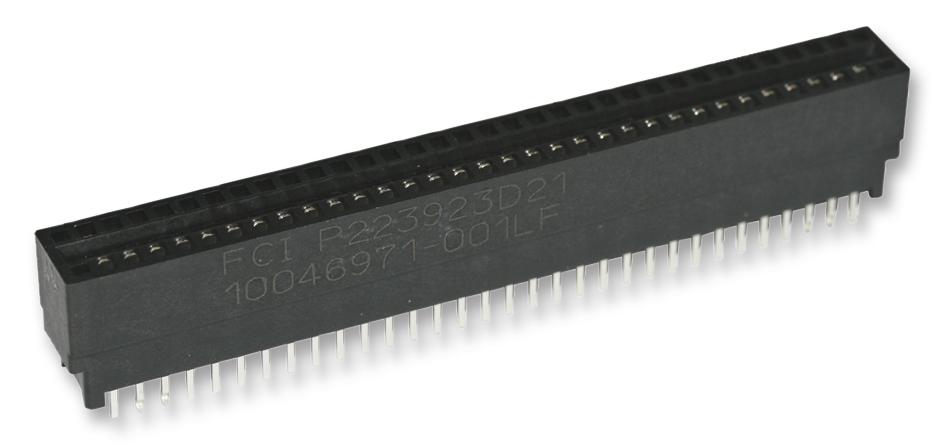

AMPHENOL COMMUNICATIONS SOLUTIONS 10046971001LF Power Card Edge Connector
The Power Card Edge connector system is a low-profile, cost-effective solution designed for reliable power distribution in compact systems like 1U servers and power supplies. It features a narrow body to maximize airflow and supports up to 7A per contact. Suitable for use in server, storage, telecommunication, and networking applications, this connector simplifies assembly with integrated design options for power and signal. Certified by UL, CSA, and TUV, it offers durability for 200 mating cycles and operates from -5°C to +105°C, ensuring efficient, environmentally compliant power delivery in dense electronic systems.
AMPHENOL COMMUNICATIONS SOLUTIONS 10046971001LF Power Card Edge Connector Specifications:
- Housing Material: High-temperature thermoplastic (UL94V-0), black
- Contact Material: High-conductivity copper alloy (power contacts), copper alloy (signal contacts)
- Contact Finish: Gold over nickel
- Solder Finish: Matte pure tin over nickel
- Current Rating: 7A per contact at 30°C
- Insulation Resistance: Minimum 5000MQ
- Withstanding Voltage: 1000V AC
- Contact Resistance: Right-angle max 55mΩ, Straddle-mount max 20mΩ, Vertical max 20mΩ
- Durability: 200 mating/unmating cycles
- Operating Temperature: -5°C to +105°C
- Insert Force: Right-angle max 13.62kg, Vertical/Straddle-mount max 8kg
- Certification: UL, CSA, TUV approved
- Product Specification: GS-12-259 (Right-angle), GS-12-338 (Vertical), GS-12-279 (Straddle-mount)
Buy the Fci Series Power Card Edge: 10046971001LF
Enhance your electronic system's power management with our Power Card Edge connectors, supporting up to 7A per contact. Designed for compact systems like 1U servers and power supplies, these connectors feature a low-profile body that maximizes airflow and cooling efficiency. They offer robust durability for up to 200 mating cycles and are certified by UL, CSA, and TUV, ensuring compliance with environmental standards. Easy to assemble with options for integrated power and signal contacts, ideal for data centers, telecommunications, and networking applications. Purchase online today for reliable, certification-approved power connectivity.
Order your Fci Series Power Card Edge connector today and ensure reliable power distribution for your compact high-density systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10046971001LF?
You can click on the BUY or RFQ button to purchase 10046971001LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10046971001LF?
You can download the 10046971001LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10046971001LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
