AMPHENOL COMMUNICATIONS SOLUTIONS 10090926P264VLF High Density D-Subminiature Connector
High Density D-Subminiature connectors are compact, robust, and ideal for high-density applications requiring reliable and secure connections. Designed for networking, storage, and industrial markets, these connectors support high mating cycle durability, RoHS compliance, and a variety of mounting options including straight, right angle, crimp, and press-fit configurations. They feature a wide contact layout (15 to 78 positions), copper alloy contacts, UL94V-0 thermoplastic insulators, and are suitable for high-speed data, power distribution, and signal integrity needs within demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 10090926P264VLF High Density D-Subminiature Connector Specifications:
- Insulator: Glass Filled Thermoplastic UL94V-0
- Contact Material: Copper alloy
- Rated Current: 2.5A
- Rated Voltage: 250V
- Contact Resistance: 25mΩ max. initial, 40mΩ max. after mating
- Insulation resistance: 5000MΩ min. at 500V DC
- Dielectric Strength: 750V RMS
- Mating Cycles: 200 (standard), 500 (high performance)
- Operating Temperature Range: -55°C to +105°C
- Contact Arrangement: 15 to 78 positions
- Material Shell: SPCC steel
- Mounting Options: Straight, right angle, crimp, press-fit, screw locks
- RoHS compliant
- Dimensions vary by configuration and contact count, typical length approximately 30-70 mm
- High-density configurations with multiple rows (up to 3 rows, 78 positions)

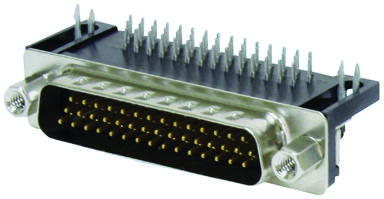

Buy the Fci Series High Density D-Subminiature Connectors: 10090926P264VLF
Enhance your system with Fci's High Density D-Subminiature connectors. Designed for reliability and high-density packaging, these connectors support high-speed data, power distribution, and signal integrity. They are compatible with various mounting styles including straight, right angle, crimp, and press-fit, ensuring flexibility for industrial, networking, and storage applications. Manufactured with high-quality materials, these connectors are RoHS compatible, durable, and tested for hundreds of mating cycles, making them ideal for demanding environments and future-proof system designs.
Get Fci Series High Density D-Subminiature Connectors today—built for high-speed data transmission, power, and long-lasting durability.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10090926P264VLF?
You can click on the BUY or RFQ button to purchase 10090926P264VLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10090926P264VLF?
You can download the 10090926P264VLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10090926P264VLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
