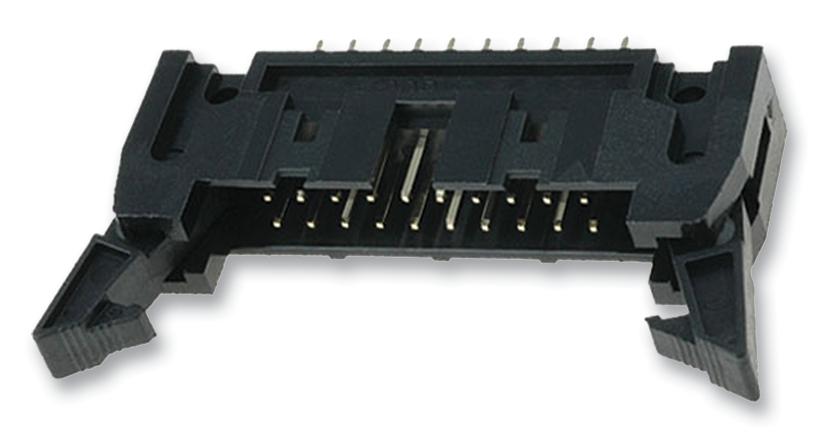

AMPHENOL COMMUNICATIONS SOLUTIONS T816150A1S101CEU Latch Header Connector
The T816 series latch header is a versatile 2.54mm pitch connector available in straight or right-angled termination, with multiple position options from 6 to 64. Constructed with a PBT+25%G.F insulator, brass contacts, and gold or tin plating, it offers high electrical performance with a contact resistance of 20mΩ max at 1A, insulation resistance over 1000MΩ, and a voltage rating of 250V AC/DC. Operating in temperatures from -40°C to +105°C, it is suitable for PCB mounting in various electronic assemblies.
AMPHENOL COMMUNICATIONS SOLUTIONS T816150A1S101CEU Latch Header Connector Specifications:
- Pitch: 2.54mm
- Number of positions: 6, 8, 10, 14, 16, 18, 20, 26, 30, 34, 40, 50, 60, 64
- Housing Color: Grey, Black
- Plating Options: Gold flash over 50 u" Ni; Full tin over 50 u" Ni
- Termination: Straight THT or Right Angled THT
- Material: Insulator - PBT with 25% glass fiber, Contacts - Brass
- Contact Plating: Gold over 50 u" Ni or Tin over 50 u" Ni
- Electrical Resistance: 20mΩ max at 1A
- Insulation Resistance: ≥1000 MΩ at 500V/DC
- Dielectric Withstanding Voltage: 500V RMS, 60Hz for 1 minute
- Current Rating: 3.0A max
- Voltage Rating: 250V AC/DC
- Operating Temperature: -40°C to +105°C
Buy the Buy Yin phenol T816 Part Number T816150A1S101CEU Online
Purchase the Yin phenol T816 latch header connector online to ensure your electronic projects have dependable PCB connections. Featuring a 2.54mm pitch with configurations up to 64 positions, the connector offers a choice of gold flash or tin plating for durable, corrosion-resistant contacts. Designed with a PBT+25%G.F insulator and brass contacts, it operates efficiently from -40°C to +105°C. This high-quality component is ideal for reliable, long-lasting electronic assemblies in various environments.
Buy Yin phenol T816 PartNumber T816150A1S101CEU now and experience unmatched reliability and high-performance PCB connectors.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS T816150A1S101CEU?
You can click on the BUY or RFQ button to purchase T816150A1S101CEU from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part T816150A1S101CEU?
You can download the T816150A1S101CEU datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of T816150A1S101CEU?
AMPHENOL COMMUNICATIONS SOLUTIONS
