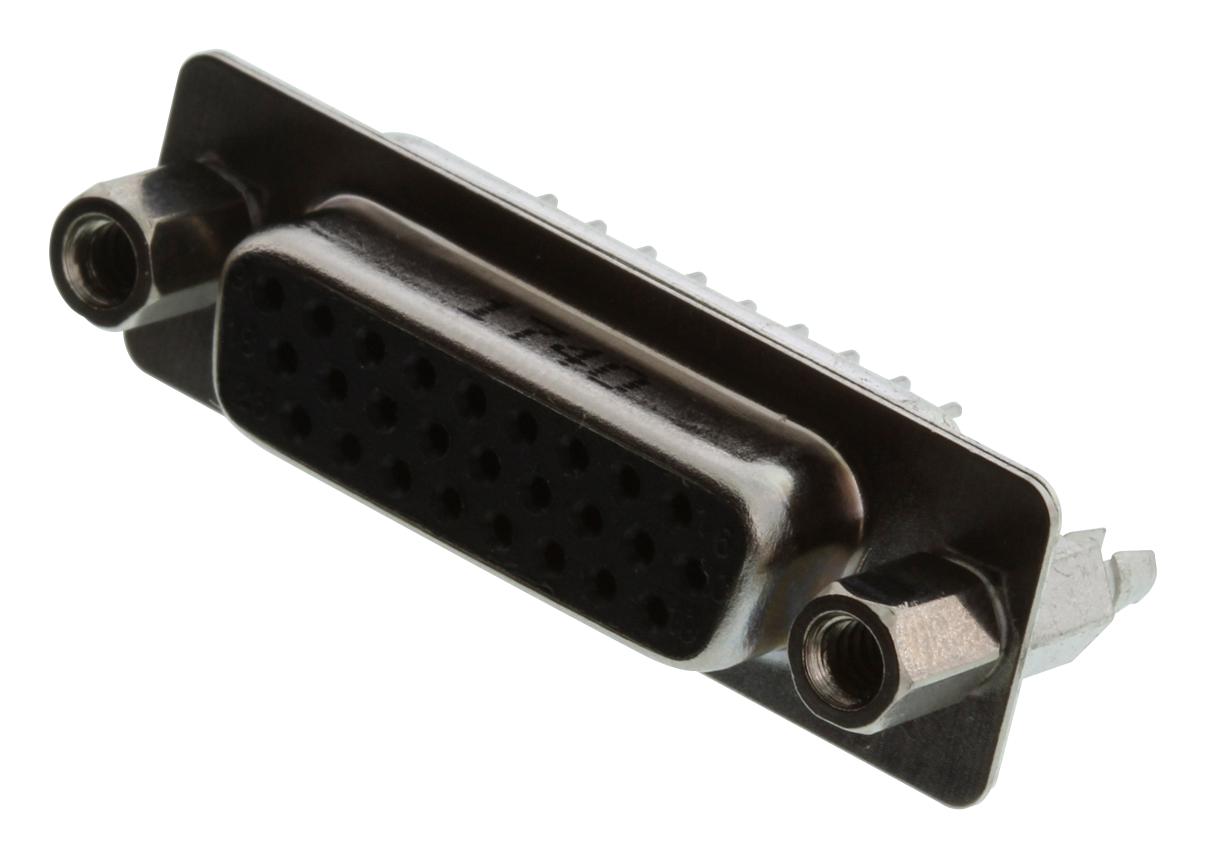

AMPHENOL COMMUNICATIONS SOLUTIONS 10090929S264VLF High Density D-Sub Connector
These high-density D-Subminiature connectors are designed for high-density packaging and reliable data transmission in industrial, communication, server, and medical applications. They feature robust construction with copper contacts, glass-filled thermoplastic insulators, and RoHS compliance. The connectors support multiple mounting options, including PCB, panel, and right-angle configurations with screw locks, clinch nuts, or press-fit contacts. Rated for 2.5A and 250V, they provide excellent electrical performance with low contact resistance and high durability, making them ideal for high-speed, high-reliability environments requiring up to 78 positions.
AMPHENOL COMMUNICATIONS SOLUTIONS 10090929S264VLF High Density D-Sub Connector Specifications:
- Contact Material: Copper alloy
- Insulator Material: Glass filled thermoplastic (UL94V-0) Black
- Rated Current: 2.5A
- Rated Voltage: 250V
- Contact Resistance: 25mΩ max. initial & 40mΩ max. after mating
- Insulation Resistance: 5000mΩ min. at 500V DC
- Dielectric Strength: 750V RMS
- Operating Temperature Range: -55°C to +105°C
- Mating Cycles: 200 (standard), 500 (high performance)
- Shell Material: SPCC steel
- Insertion/Extraction Force: 5N max./0.2N min.
- RoHS compliant
- Number of Positions: 15, 26, 44, 62, 78
- Mounting Options: PCB, panel, right angle, crimp, screw locks, clinch nuts, press-fit
Buy the Buy Industrial Connectors Part Number 10090929S264VLF Online
Purchase the high-density D-Subminiature connector number 10090929S264VLF online today for your industrial, communication, or medical equipment. Designed with robust copper contacts and glass-filled thermoplastic insulators, it supports up to 78 positions for high-density packaging. The connector offers excellent electrical performance, rated for 2.5A and 250V, with low contact resistance and high durability for demanding applications. Suitable for PCB, panel, and right-angle mounting, ensuring reliable connections in high-speed environments for maximum system performance.
Get FCI 10090929S264VLF today—built for high-speed data transmission and long-lasting durability.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10090929S264VLF?
You can click on the BUY or RFQ button to purchase 10090929S264VLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10090929S264VLF?
You can download the 10090929S264VLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10090929S264VLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
