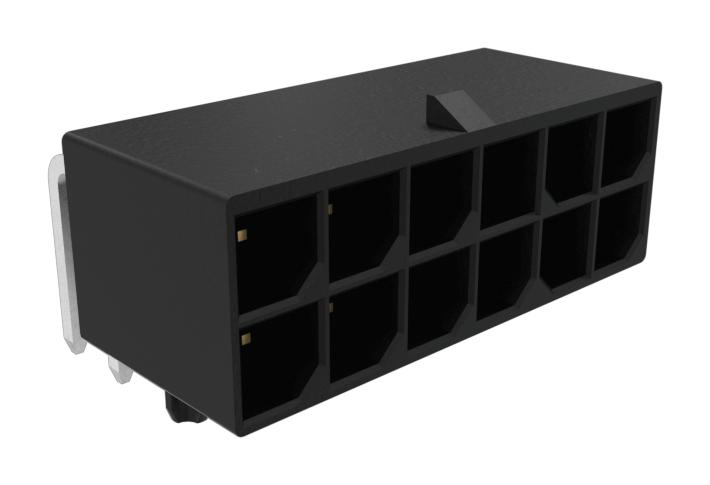

AMPHENOL COMMUNICATIONS SOLUTIONS 1014699708100LF Power Connector System
The Amphenol Minitek Pwr 5.70 connector system is a comprehensive solution designed for power applications requiring high current capabilities. With a current rating of up to 23A per contact and a wire gauge range of 16-12AWG, this system is ideal for wire-to-board connections. Features include polarized mating geometry to prevent mis-mating, a wide operating temperature range (-40°C to 105°C), and scoop-proof housing to protect terminals. It finds application in diverse sectors such as rack-mount servers, medical equipment, and industrial control systems.
AMPHENOL COMMUNICATIONS SOLUTIONS 1014699708100LF Power Connector System Specifications:
- Current Rating: Up to 23A/contact
- Operating Temperature Range: -40°C to 105°C (Tin Plated), -40°C to 120°C (Gold Plated)
- Mating Force: 6.8N (Tin Plated), 6.0N (Gold Plated) per circuit max.
- Unmating Force: 6.5N (Tin plated), 5.6N (Gold plated) per circuit max.
- Durability: 25 cycles (Tin plated), 200 cycles (Gold plated)
- Low Level Contact Resistance: 2m Ω max. (Initial)
- Insulation Resistance: 1000M Ω min.
- Voltage Rating: 600V AC (RMS)/DC
- Contact Resistance: Tin plated 10m Ω / gold plating 5m Ω max.
- Dielectric Withstand Voltage: 2200V AC
- Material (Board Connector): High-conductivity copper with optional tin and gold plating
- Material (Header Housing): LCP, black & natural, UL 94V-0
- Material (Receptacle Housing): Nylon 66, black & natural, UL 94V-0 & UL 94V-2
- Material (Crimping Terminal): High-conductivity copper with optional tin and gold plating
- UL Approval: E66906
- TUV Approval: B171234414032
- Amphenol Product Specification: GS-12-1405
- Amphenol Packaging Specification: GS-14-2595
- Amphenol Application Specification: GS-20-0687
- Flammability Rating: UL94V-0
- Halogen-free: Yes
- RoHS Compliant: Yes
Buy the 10146997-08100LF AMPHENOL COMMUNICATIONS SOLUTIONS Power Connector System | myMectronic
Securely purchase the Amphenol 10146997-08100LF connector and ensure reliable power connections for your applications.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 1014699708100LF?
You can click on the BUY or RFQ button to purchase 1014699708100LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 1014699708100LF?
You can download the 1014699708100LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 1014699708100LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
