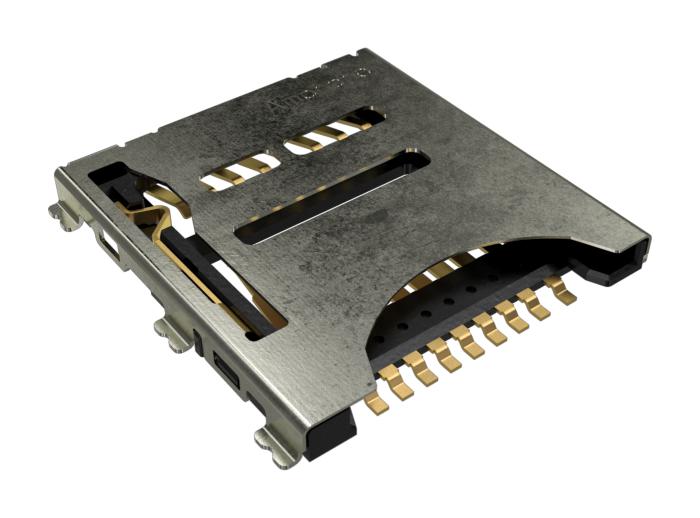

AMPHENOL COMMUNICATIONS SOLUTIONS 101019966912A microSD Express Connector
The Amphenol ICC microSD Express connector is a cutting-edge solution for high-resolution content and speed-demanding mobile computing and IoT devices. This 17-pin connector enables microSD Express platforms to reach their full potential, serving as a removable Solid State Drive (SSD). It boasts a data transfer speed of up to 8GT/s, approximately 6x faster than existing Micro SD cards, and features a robust mating mechanism for reliable connection. The connector is designed with a card-detect function, supports backward compatibility, and meets environmental, health, and safety requirements with its lead and halogen-free composition. It is ideal for applications such as mobile phones, tablets, virtual reality headsets, cameras, and unmanned aerial vehicles.
AMPHENOL COMMUNICATIONS SOLUTIONS 101019966912A microSD Express Connector Specifications:
- Data Rate: 8GT/s
- Contact Resistance: 100m Ω max.
- Dielectric Withstanding Voltage: 500V AC max. (1 minute)
- Insulation Resistance: 1000m Ω min.
- Current Rating: 0.5A AC/DC max.
- Storage Temperature: -40°C to +85°C
- Operating Humidity Range: 95% R.H. max.
- Operating Temperature Range: -25°C to +85°C
- Normal Force: 30gf/pin min.
- Durability: 5000 mating cycles
- Voltage Rating: 100V rms min.
Buy the 101019966912A AMPHENOL COMMUNICATIONS SOLUTIONS microSD Express Connector | myMectronic
Securely purchase the Amphenol ICC 101019966912A microSD Express connector for your next project.
