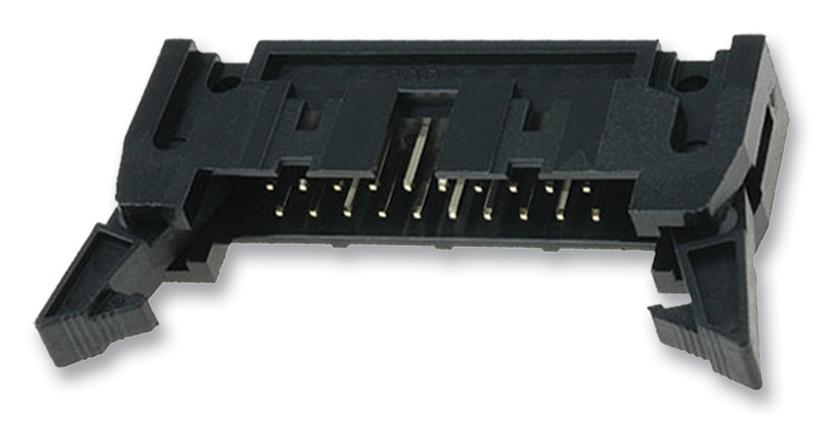

AMPHENOL COMMUNICATIONS SOLUTIONS T816120A1R101CEU phenol latch header
The T816 phenol latch header is a reliable, high-quality connector ideal for industrial applications. It features a 2.54mm pitch, various color and plating options, and configurations with 6 to 64 positions. Made with PBT+25%G.F insulator and brass contacts over 50u
AMPHENOL COMMUNICATIONS SOLUTIONS T816120A1R101CEU phenol latch header Specifications:
- Pitch: 2.54mm
- Housing Color: Grey, Black
- Number of Positions: 6 to 64
- Plating Options: Gold over 50u" Ni, Tin over 50u" Ni
- Contact Material: Brass, Gold or Tin Plated
- Insulation Material: PBT+25%G.F, UL 94V-0
- Insulation Resistance: 1000 MΩ min at 500V/DC
- Dielectric Withstanding Voltage: 500V RMS 60Hz for one minute
- Current Rating: 3.0A max
- Voltage Rating: 250V AC/RMS 60Hz, DC
- Operating Temperature: -40°C to +105°C
- Contact Resistance: 20 mΩ max at 1A DC
- Dimensions vary depending on number of pins and configuration
Buy the Berg T816120A1 – Reliable Phenol Latch Header for Industrial Applications
Order the Berg T816120A1 phenol latch header online today and enjoy fast delivery. This high-quality connector features a 2.54mm pitch, available in various configurations including straight, right-angled, short, and long latch options. Made with durable PBT+25%G.F insulator and brass contacts with gold or tin plating, it ensures excellent electrical performance, insulation resistance of 1000 MΩ, and a current rating of 3A. Suitable for harsh environments, operating from -40°C to +105°C, and compliant with RoHS standards, it is ideal for industrial PCB applications. Buy now to enhance your manufacturing process with reliable connections.
Buy Berg T816120A1 phenol latch header now and experience unmatched reliability and performance in your industrial PCB designs.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS T816120A1R101CEU?
You can click on the BUY or RFQ button to purchase T816120A1R101CEU from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part T816120A1R101CEU?
You can download the T816120A1R101CEU datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of T816120A1R101CEU?
AMPHENOL COMMUNICATIONS SOLUTIONS
