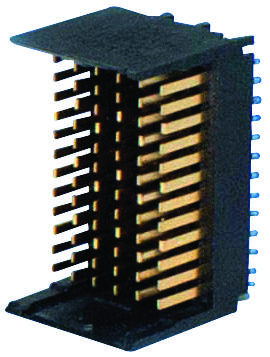

AMPHENOL COMMUNICATIONS SOLUTIONS 10114761101LF AirMax Backplane Connector
The AirMax VS[®] connector family offers a broad range of backplane and midplane interconnect solutions. Its innovative edge-coupling and air dielectric design minimizes insertion loss and crosstalk, making it a cost-effective alternative to shielded connector systems. The open pin field design provides flexibility in board layout, and the connector supports a variety of system architectures including backplane, midplane, coplanar, and mezzanine applications. With speeds up to 25Gb/s and backward compatibility with legacy systems, the AirMax VS[®] connector is a versatile choice for modern electronic systems.
AMPHENOL COMMUNICATIONS SOLUTIONS 10114761101LF AirMax Backplane Connector Specifications:
- Contacts: Copper Alloy
- Contact Finish: Performance-based plating over nickel at separable interface; Tin over nickel on press-fit tails on standard lead-free products
- Housings: High Performance Thermoplastic, UL94V–0
- Contact Resistance: ≤35mΩ initial, ≤10mΩ increase after environmental test
- Current Rating: 0.5A/contact with all contacts powered
- Differential impedance: 100 ± 8Ω @ 50 ps (10-90%) rise time (100Ω connectors)
- Differential insertion loss: <1dB through 6.25Gb/s < 1.5 dB through 12.5Gb/s (100Ω connectors)
- Near-end crosstalk: < -38 dB through 6.25Gb/s; < -28 dB through 12.5Gb/s (100Ω connectors)
- Far-end crosstalk: < -41 dB through 6.25Gb/s; < -28 dB through 12.5Gb/s (100Ω connectors)
- Differential impedance (80Ω): 85 ±5Ω @ 50 ps (10-90%) rise time
- Differential insertion loss (80Ω): <1.5 dB through 8Gb/s
- Near-end crosstalk (80Ω): < -30 dB through 8Gb/s
- Far-end crosstalk (80Ω): < -30 dB through 8Gb/s
- Durability: 200 cycles
- Mating Force: 0.45N max./contact
- Unmating Force: 0.15N min./contact
- Compliant pin insertion force: 40 N max. (Vertical headers, right-angle headers or right-angle receptacles); 25 N max. (Vertical receptacles)
