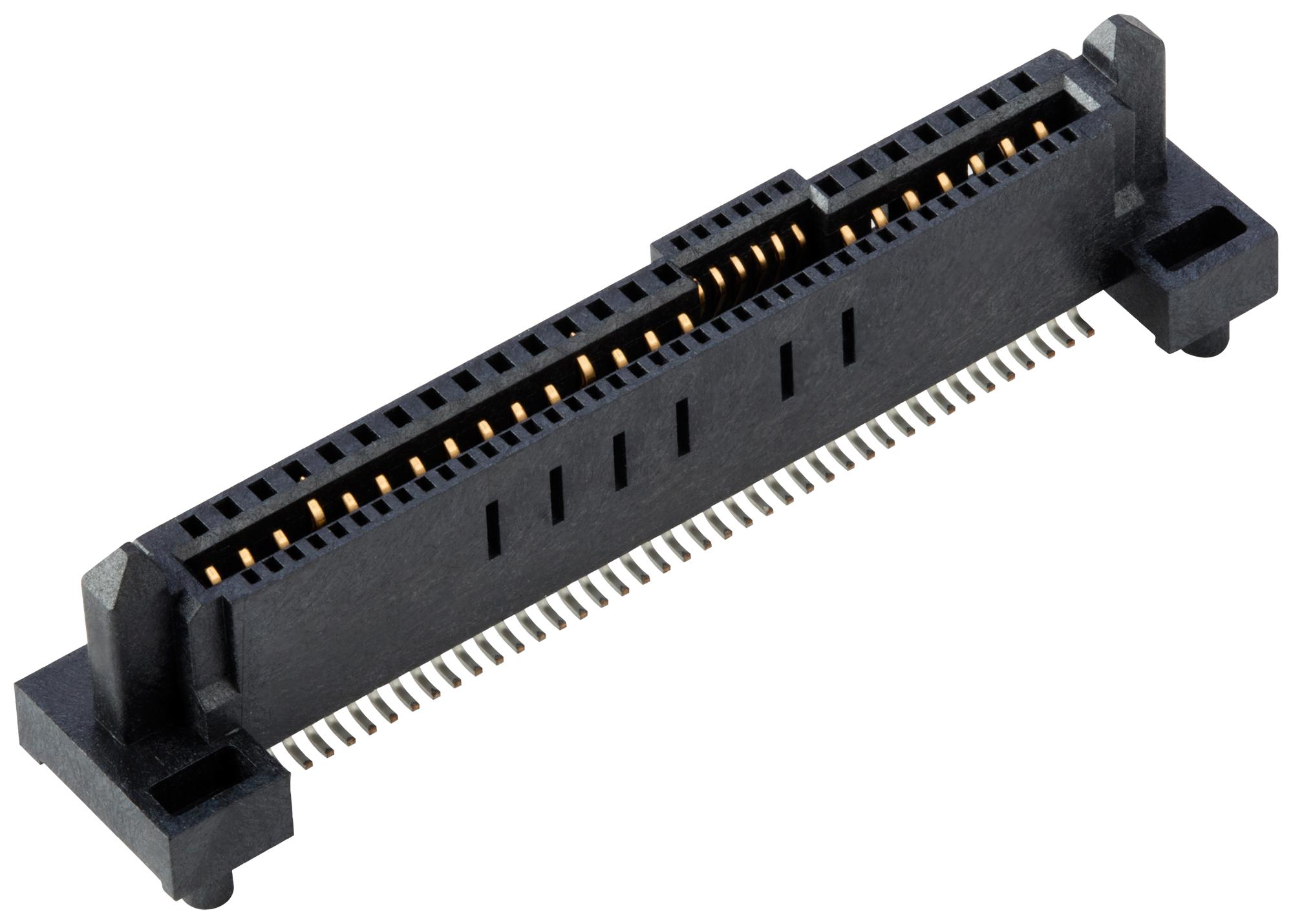

AMPHENOL COMMUNICATIONS SOLUTIONS 10120513002CTRLF storage connector
The SAS PCI Express component interconnect offers high-speed storage solutions with a 68-position SAS PCIe receptacle and plug connectors. Designed for next-generation enterprise storage, it supports up to 12Gb/s SAS HDDs and PCIe devices, ensuring fast data transfer and reliable performance. Its self-aligning molded guide post simplifies mating, while compatibility with SFF8482, SFF8680, and SATA connectors enhances versatility. Built with RoHS-compliant, halogen-free materials, and capable of withstanding 500 mating cycles, it’s ideal for server, storage, and enterprise storage systems requiring robust and high-speed interfaces.
AMPHENOL COMMUNICATIONS SOLUTIONS 10120513002CTRLF storage connector Specifications:
- Material: Contact Base Metal: Copper Alloy
- Housing: Halogen-free High Temperature Thermoplastic (UL94V-0), Color: Black
- Durability: 500 mating cycles
- Mating Force: 59N max.
- Unmating Force: 12N min.
- Contact Resistance: 30mΩ max. for signal contacts
- Current Rating: 1.5A min. per contact, power pins 30°C rise not exceeding 30°C
- Insulation Resistance: 1000MΩ min.
- Temperature Life: 85°C for 500 hours
- Humidity: 96 hours at 40°C with 90-95% RH
- Thermal Shock: 10 cycles between -55°C and +85°C
- Package: Tray, Tape and reel
- Product Specification: GS-12-282
- Industry Specification: SFF-8639
Buy the FCI Series SAS PCI Express: 10120513002CTRLF
Enhance your enterprise storage with the high-speed SAS PCI Express connector featuring 12Gb/s transfer capabilities and durable design. This connector supports hot-plugging, blind mating, and is compatible with SAS, SATA, and PCIe devices, making it ideal for servers, storage blades, and external storage systems. Its rugged construction ensures long-term reliability with up to 500 mating cycles. Purchase this versatile, RoHS-compliant connector online today and upgrade your storage system for faster, more reliable data transfers and superior performance.
Get FCI SAS PCI Express 10120513002CTRLF today—built for high data transfer speeds and reliable enterprise storage performance.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10120513002CTRLF?
You can click on the BUY or RFQ button to purchase 10120513002CTRLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10120513002CTRLF?
You can download the 10120513002CTRLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10120513002CTRLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
