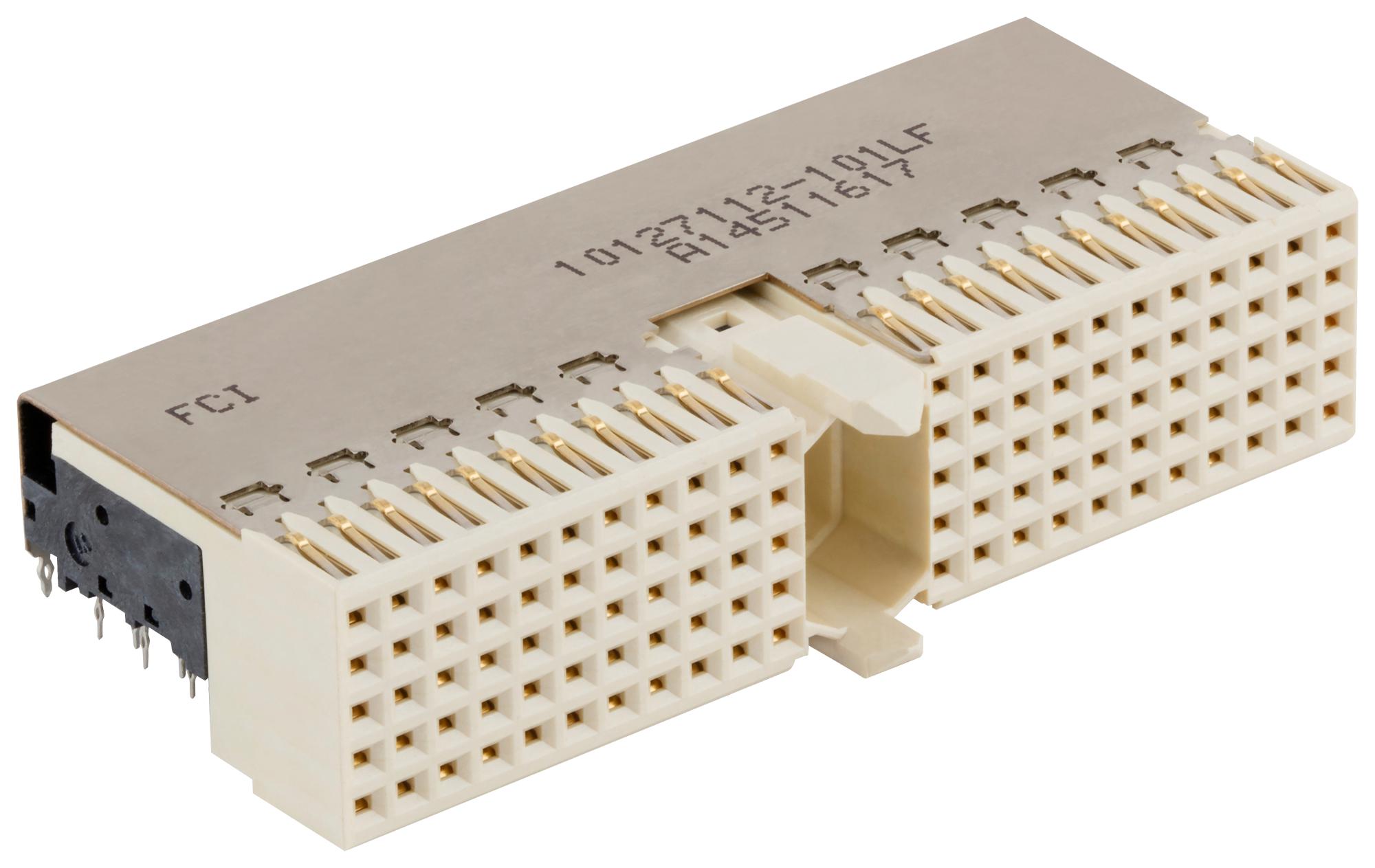

AMPHENOL COMMUNICATIONS SOLUTIONS 10127112101LF high-speed connector system
Millipacs® is a 2mm pitch modular interconnection system designed for board-to-board and cable-to-board applications in HM configuration. It complies with IEC 917, IEC 61076-4-101, and Telcordia GR-1217-CORE standards. The system supports high-speed data transmission with low crosstalk, making it ideal for telecommunications, data centers, and industrial applications that demand high reliability and signal integrity. Featuring optional shielding, blank positions, and compatibility with standard and 10G versions, Millipacs® ensures efficient, scalable, and cost-effective connectivity for complex electronic systems.
AMPHENOL COMMUNICATIONS SOLUTIONS 10127112101LF high-speed connector system Specifications:
- Pitch: 2mm
- Current Rating: 1.5A at 20°C, 1.0A at 70°C
- Test Voltage: 750 Vrms
- Contact Resistance: 20 mΩ max
- Insulation Resistance: 10^9 MQ min
- Operating Temperature: -55°C to +125°C
- Material: High-Temperature polymer insulator, Copper alloy contacts
- Contact Plating: Gold/Palladium nickel on mating areas, Tin over Nickel on press-fit areas
- Mating Force: 0.75 N max per contact
- Withdrawal Force: 0.15 N min per contact
- Hertz Stress: 200 Kpsi min
- Misalignment: Longitudinal ±2.0mm, Transversal ±2.5mm
- Inclination: ±2.0°
- Standards: IEC 917, IEC 61076-4-101, Telcordia GR-1217-CORE, UL and CSA recognized
Buy the FCI 10127112101LF – Reliable Interconnection System for Telecom and Data Applications
Enhance your electronic assembly with the Millipacs high-speed connector system. Designed for board-to-board and cable-to-board use, it offers high data transfer rates up to 25Gbps, low crosstalk, and optional shielding for superior signal integrity. Compatible with standard and 10G modules, it ensures reliable, scalable connections suitable for telecom, data centers, industrial, and medical industries. Easy to install, cost-effective, and with flexible configurations, this connector system is an essential component for modern high-performance electronic systems.
Order your FCI 10127112101LF Series Millipacs high-speed connector today and give your projects the dependable, scalable connectivity they deserve.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10127112101LF?
You can click on the BUY or RFQ button to purchase 10127112101LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10127112101LF?
You can download the 10127112101LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10127112101LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
