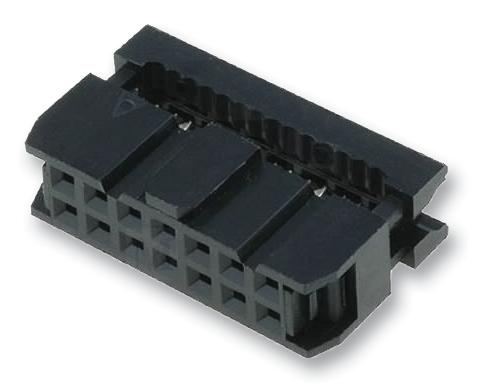

AMPHENOL COMMUNICATIONS SOLUTIONS T812130A100CEU 2.54mm pitch socket
The phenol TS812 WC socket features a 2.54mm pitch with 6 to 64 positions, offering reliable electrical connection with high-quality materials suitable for various applications. Constructed with glass-reinforced thermoplastic insulators and phosphor bronze contacts, plated with full flash gold or selective gold, and with tin on the termination area. It is rated for 500 VDC, 3A per contact, and operates within a temperature range of -40°C to +105°C. Suitable for electronic assemblies requiring secure, durable, and corrosion-resistant connections, it also features optional strain relief for enhanced stability.
AMPHENOL COMMUNICATIONS SOLUTIONS T812130A100CEU 2.54mm pitch socket Specifications:
- Pitch: 2.54mm
- Number of Positions: 6 to 64
- Material - Insulator: Glass-reinforced thermoplastic, UL 94V-0, PBT
- Material - Contact: Phosphor Bronze with gold or tin plating
- Plating Options: Flash Gold, Selective Gold, Tin
- Voltage Rating: 500 VDC / 250 VAC
- Current Rating: 3A per contact
- Contact Resistance: Max 20mΩ at 1A
- Insulation Resistance: Min 1000 MΩ
- Dielectric Withstanding Voltage: 500 VAC RMS for 1 minute
- Operating Temperature: -40°C to +105°C
- Environmental Resistance: Corrosion-resistant gold plating, insulation withstands harsh environments
- Termination: Full tin on the termination area with nickel underplating
- Dimensions: Length varies with number of positions, typical contact length approximately 6mm
- Optional Features: Strain relief, plating variations for customized applications
Buy the Phenol Series TS812 WC: 2.54mm Pitch Socket with Gold Plating for Electronic Connectors
Purchase the Phenol TS812130A100CEU socket online today for high-quality, durable connections designed for electronic systems. Featuring a 2.54mm pitch, multiple position options from 6 to 64, and advanced plating options including full gold and tin, this socket ensures reliable contact performance and corrosion resistance. Its robust construction with glass-reinforced thermoplastic insulators and phosphor bronze contacts withstands harsh environments, while rated for 500V and 3A, making it ideal for various industrial and electronic applications. Order now for quick delivery and secure your connection needs.
Buy Phenol TS812130A100CEU now and experience unmatched reliability and performance in your electronic assembly projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS T812130A100CEU?
You can click on the BUY or RFQ button to purchase T812130A100CEU from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part T812130A100CEU?
You can download the T812130A100CEU datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of T812130A100CEU?
AMPHENOL COMMUNICATIONS SOLUTIONS
