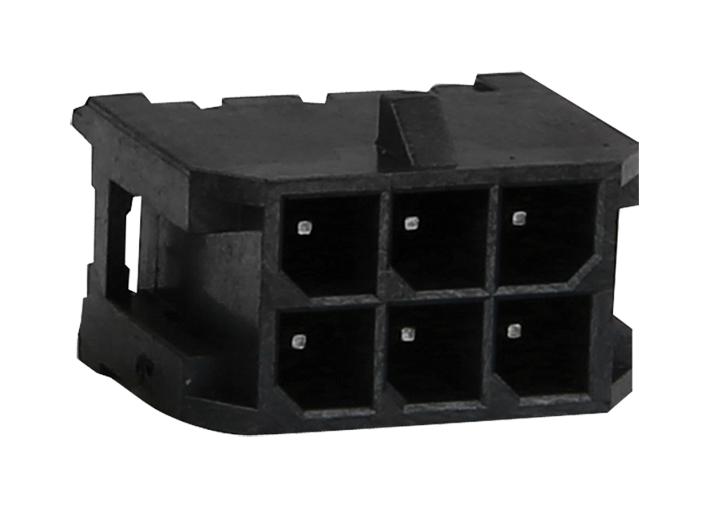

AMPHENOL COMMUNICATIONS SOLUTIONS 10127721061LF Power Connector System
Minitek Pwr 3.0 is a reliable connector system suitable for power applications, supporting current up to 5A per circuit. Its compact, robust design features dual and single row options with polarized and fully isolated terminals, preventing mismatching and damage. The system includes vertical and right-angle PCB headers, receptacle housings, and offers quick crimping with low insertion force. Certified for safety and environmental compliance, it is ideal for telecommunications, industrial, and household appliances, ensuring secure mating, high retention, and easy installation in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 10127721061LF Power Connector System Specifications:
- Current Rating: 5A per contact
- Voltage Rating: 250Vrms
- Material (Board Connector): Brass with optional Tin and Gold Flash plating
- Housing Material: LCP & Nylon, Black, UL94 V-0
- Crimping Terminal: Phosphorus Bronze with optional Tin and Gold Flash plating
- Terminal Insertion Force: 4.5N max.
- Terminal Withdrawal Force: 2N min. before durability, 1.5N min. after durability
- Durability: 100 mating cycles
- Operating Temperature: -40°C to +105°C
- Insulation Resistance: 1000MΩ min.
- Glow Wire Flammability Rating: UL94 V-0
- Meets IEC 60335-1 for household appliances
- UL Certifications: UL 66906 & E467317 for dual row, UL pending for single row
- Environmental: RoHS compliant, lead-free
- Packaging: Tray for PCB headers, Bag for housing, Reel for terminals
- Contact Resistance: 20mΩ max.
- Dielectric Withstand Voltage: 1000V AC
Buy the Amphenol PWR 3.0 – Reliable Connector System for Industrial Applications
Enhance your industrial, automotive, or household equipment with the reliable Power Connector System designed for power applications up to 5A per circuit. Featuring polarized, fully isolated terminals, and quick crimping, this system offers secure, durable, and easy-to-install connections. Its compliant with international safety standards, including UL and IEC certifications, ensuring high operational safety. Suitable for PCB and wire-to-wire uses, it provides high retention, low insertion force, and exceptional robustness, making it an ideal choice for demanding, safety-critical environments.
Buy Amphenol PWR 3.0 connector system now and experience unmatched reliability, high safety standards, and versatile power solutions for demanding industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10127721061LF?
You can click on the BUY or RFQ button to purchase 10127721061LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10127721061LF?
You can download the 10127721061LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10127721061LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
