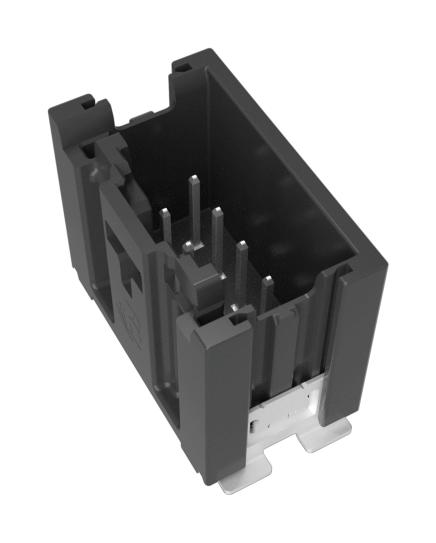

AMPHENOL COMMUNICATIONS SOLUTIONS 10143535106KLF Crimp-to-Wire Connector
The Minitek MicroSpace™ crimp-to-wire connector platform offers a compact, robust, and versatile solution suitable for harsh environments and high vibration applications. Supporting LV214 Severity-2 standards, it features pitches of 1.80mm, 1.50mm, and 1.27mm in single and double row configurations with top and side latch options. Incorporating low insertion force terminals and keying features, it ensures proper mating and prevents mismatching. Designed with proven controls and compatible with standard crimping tools up to 22 AWG, it provides high vibration resistance with a 4N normal force and locking strength over 75N. The connector's design guarantees secure connections, ease of assembly, and up to 4A current capacity per contact, making it ideal for demanding industrial and electronic applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 10143535106KLF Crimp-to-Wire Connector Specifications:
- Pitch options: 1.27mm, 1.50mm, 1.80mm
- Configuration: Single and double row
- Row options: Top and side latch
- Current rating: Up to 4A per contact
- Voltage rating: 48V
- Contact material: High Current Alloy with optional Tin, Gold/GXT plating
- Housing material: High temperature thermoplastic UL94V-0
- Terminal insertion force: Less than 3N
- Terminal retention: Greater than 50N
- Durability: 20 mating cycles for Sn, 100 for Au/GXT
- Temperature range: -40°C to +130°C
- Vibration resistance: Normal force 4N, locking >75N
- Insulation Resistance: Greater than 100MQ
- Low level contact resistance: Less than 30mΩ
- Dielectric voltage: 500VAC
- Wire size compatibility: Up to 22 AWG
- Environmental resistance: Suitable for harsh conditions
Buy the Amphenol 10143535106KLF – Reliable Crimp-to-Wire Connector for Industrial Applications
Secure your electronic and industrial applications with the high-performance Minitek MicroSpace connector system. Featuring keying to prevent mismatching, low insertion force terminals for easy mating, and high vibration resistance, it ensures reliable and secure connections even in harsh environments. With compatibility for standard crimping tools up to 22 AWG, a current capacity of up to 4A per contact, and versatility in configurations and pitches, this connector is essential for demanding electronic assemblies, sensors, automotive, and industrial equipment. Order online now for fast, reliable delivery.
Buy Amphenol 10143535106KLF now and experience unmatched durability and secure connections for demanding industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10143535106KLF?
You can click on the BUY or RFQ button to purchase 10143535106KLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10143535106KLF?
You can download the 10143535106KLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10143535106KLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
