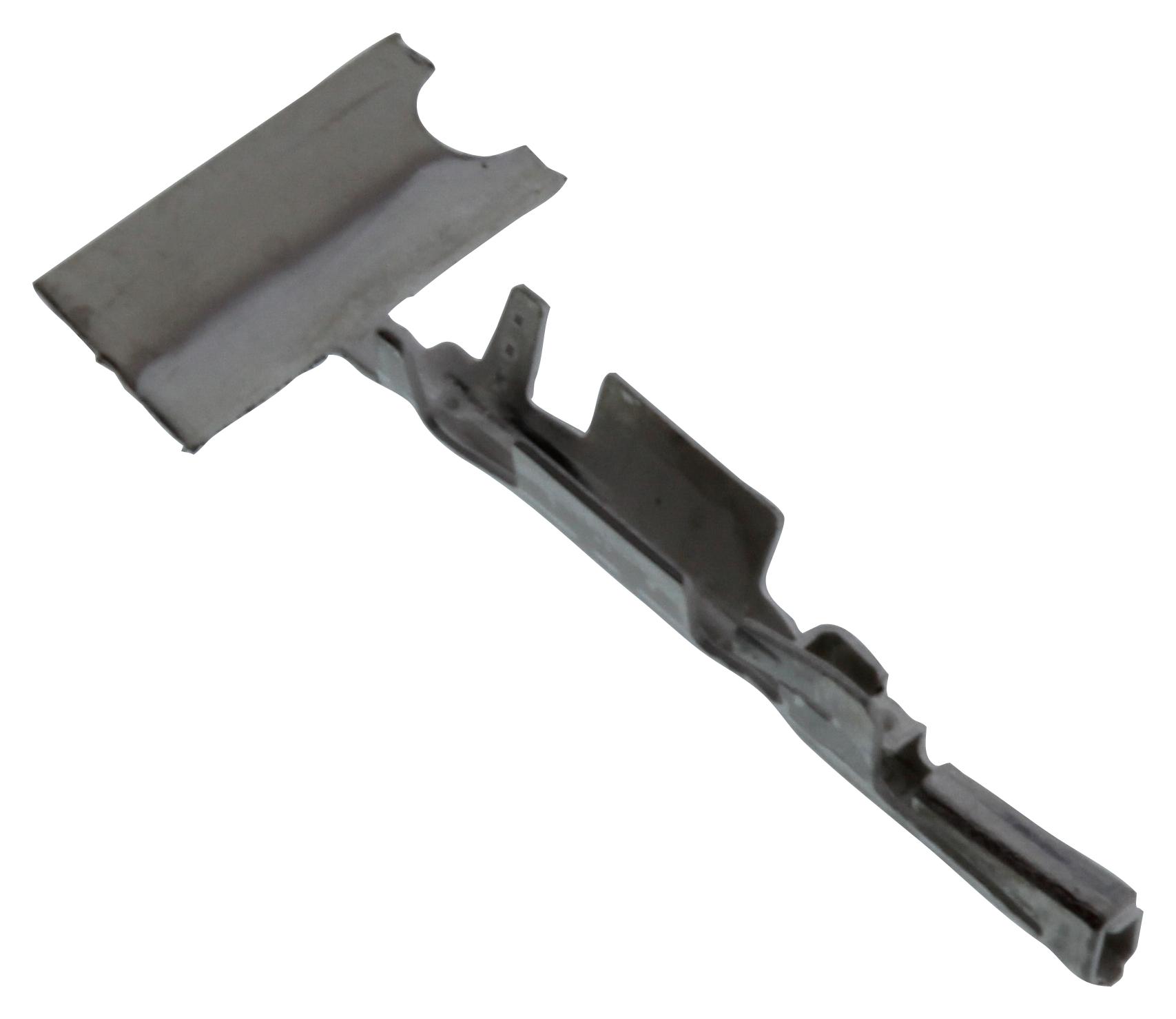

AMPHENOL COMMUNICATIONS SOLUTIONS 10141272111LF Datasheet & Stock

The Minitek MicroSpace™ crimp-to-wire connector platform features a unique design that supports LV214 Severity-2 standards and offers compatibility with 1.80mm, 1.50mm, and 1.27mm pitch configurations. This compact, robust, and versatile connector system is available in both single and double-row versions, with top and side latch options. It incorporates a low insertion force terminal for easier mating with receptacles, along with keying to prevent mismatching. Terminal positioning assurance (TPA) and connector positioning assurance (CPA) ensure proper insertion, mating, and locking. The design includes primary and secondary contact retention, suitable for harsh environments, based on proven design controls. Compatibility with existing crimp sections and automated crimp tooling up to 22 AWG is supported, with no special tools required. It provides a normal 4N force to resist vibration and over 75N locking strength. Features also include a poka-yoke polarization system to prevent incorrect mating. The contacts are rated up to 4A per contact.

View 10141272111LFDatasheet [pdf]
