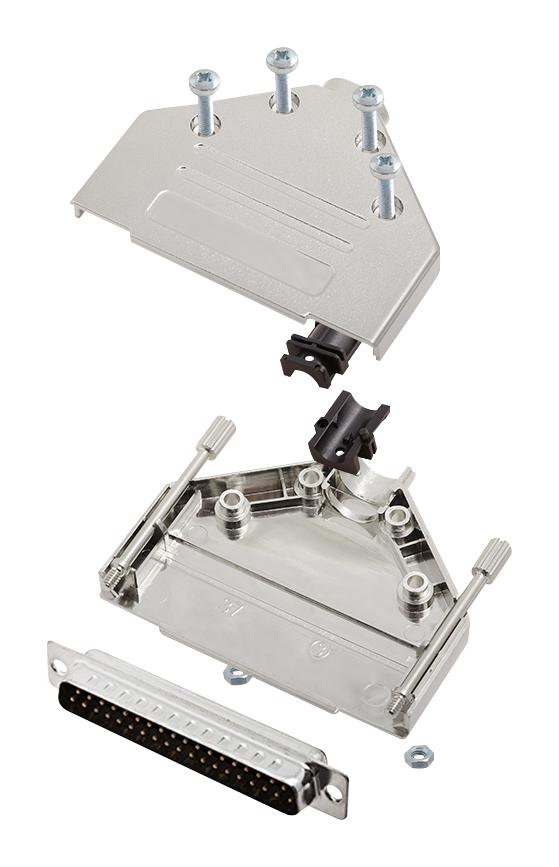

AMPHENOL COMMUNICATIONS SOLUTIONS L17DTPKM37L717SDC37P D-Sub Solder Cup Connector
The Metalized Plastic Hoods DTPK-M+D-Sub Solder Cup combines durable metalized plastic components with high-temperature resistance, ensuring secure and reliable cable connections in harsh environments. It features a UL 94 V-0 plastic insulator, nickel-over-copper plating, and a glass-filled TP shell with UL94 V-0 rating, supporting operating temperatures from -55°C to +110°C. The solder cup contacts are gold flash over nickel, rated for over 1000V RMS withstand voltage, and rated for 5A current. Features include EMI shielding, quick re-openable design, and compatibility with sizes 9, 15, 25, and 37, making it ideal for industrial and electronic applications.
AMPHENOL COMMUNICATIONS SOLUTIONS L17DTPKM37L717SDC37P D-Sub Solder Cup Connector Specifications:
- Material: UL 94 V-0 plastic
- Plating: Nickel over Copper
- Operating Temperature: -55°C to +110°C
- Cable Entry: Top Entry, up to 11.5mm cable O.D.
- Thumbscrews: UNC 4-40 (Standard)
- Insulator: Glass filled thermoplastic (TP), UL94 V-0
- Shell: Steel, Tin Plated
- Contact Material: Copper Alloy
- Contact Plating: Gold Flash over Nickel
- Withstanding voltage: >1000V RMS to 50 Hz for 1 minute
- Current Rating: 5A
- Insulator Resistance: >5000 MΩ
- Supports sizes: 9, 15, 25, 37
- Features: 360° EMI shielding, re-openable, quick assembly
- Dimensions (approximate): DTPK-P: 31.2-69.7 mm depending on size, Dim A, B, C vary by size
Buy the Amphenol Series D-Sub Solder Cup: L17DTPKM37
Purchase the Amphenol D-Sub Solder Cup Connector online today to ensure your electronic and industrial applications benefit from high-quality, reliable, and EMI-shielded connections. Designed for durability and high-temperature environments, this connector features a UL 94 V-0 plastic insulator, gold-plated contacts, and robust steel shells, supporting sizes 9, 15, 25, and 37. Its quick re-openable design simplifies assembly and maintenance, while the high withstand voltage of over 1000V RMS ensures safety and long-term performance. Ideal for demanding industrial and electronic tasks needing secure, corrosion-resistant connections.
Buy Amphenol L17DTPKM37 now and experience unmatched reliability and high-performance industrial connectivity solutions.
