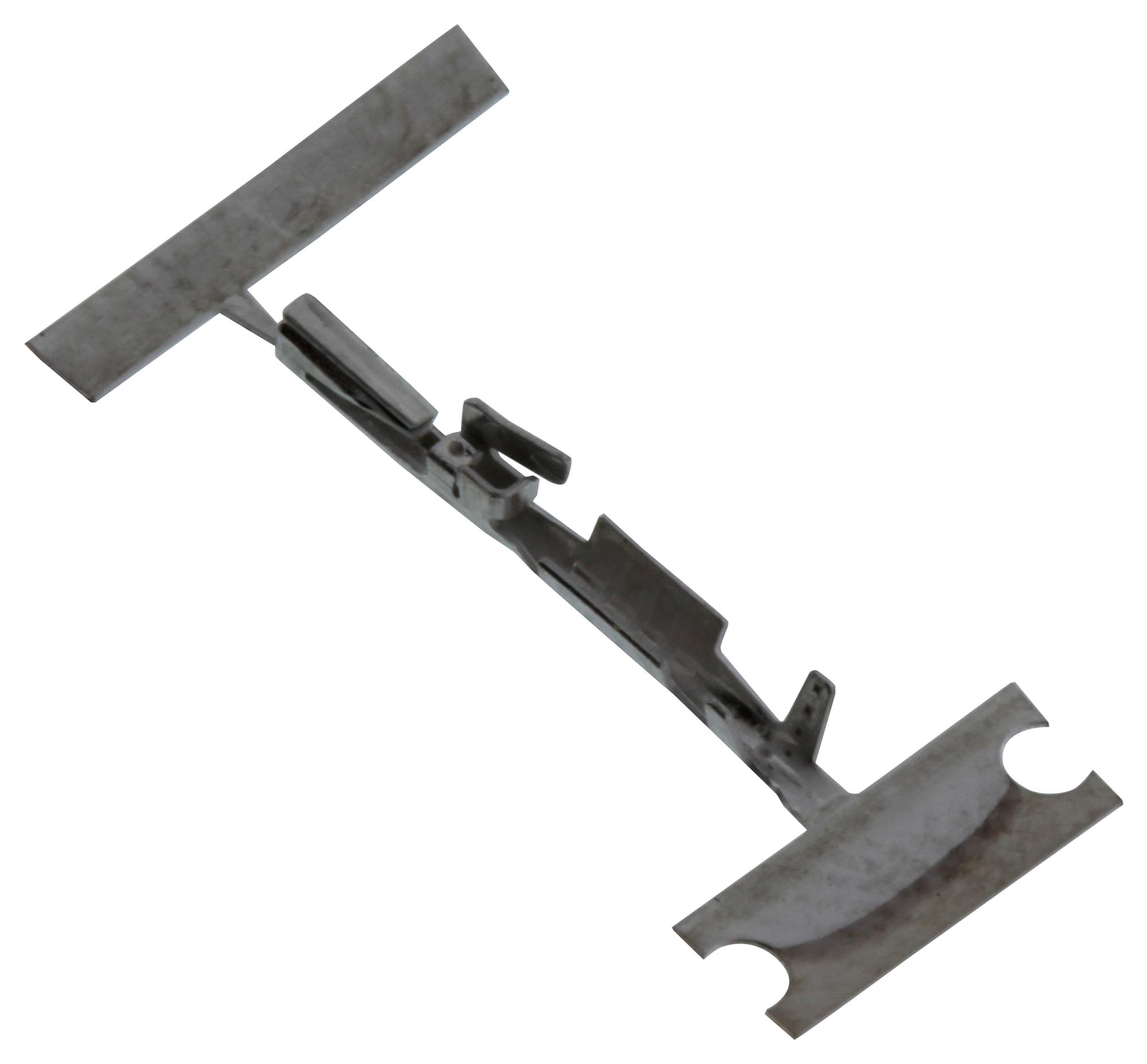

AMPHENOL COMMUNICATIONS SOLUTIONS 10141272112LF MicroSpace Crimp Connector
The Minitek MicroSpace Crimp-to-Wire connector platform is designed for compact and robust applications. It supports LV214 Severity-2 requirements and offers features like keying, terminal positioning assurance (TPA), and connector positioning assurance (CPA) for secure and reliable connections. Suitable for harsh environments, this connector system utilizes high-current alloy contacts and a high-temperature thermoplastic housing, making it ideal for automotive, camera, and lighting applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 10141272112LF MicroSpace Crimp Connector Specifications:
- Contact Material: High Current Alloy with Tin/Gold/GXT plating
- Housing Material: High temperature thermoplastic, UL94V-0
- Crimping Terminal Material: High Current Alloy with Tin/Gold/GXT plating
- Terminal Insertion Force: <3N
- Low Insertion Force Terminal: <2N (upon request)
- Terminal Retention Force: >50N
- Durability: 20 mating cycles (Sn), 100 mating cycles (Au/GXT)
- Wire Pullout Force: >50N (0.35qmm[2])
- Low Level Contact Resistance: <30m Ω
- Insulation Resistance: >100M Ω
- Voltage Rating: 48V
- Current Rating: 4A
- Dielectric Withstanding Voltage: 500VAC
- Temperature Rise: 30°C max
- Operating Temperature: -40ºC to +130ºC
- Pitch: 1.27mm, 1.50mm, 1.80mm
- Number of Positions: 2-3, 4-16, 4-15
