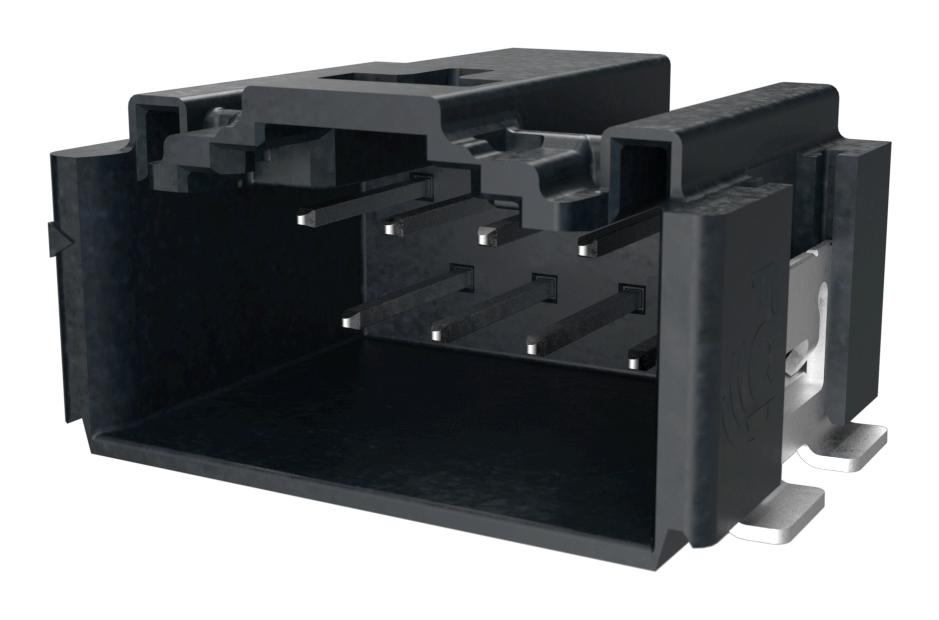

AMPHENOL COMMUNICATIONS SOLUTIONS 10142344112KLF Crimp-to-Wire Connector
The Minitek MicroSpace™ crimp-to-wire connector platform features a compact and robust design suitable for LV214 Severity-2 applications, with pitches of 1.80mm, 1.50mm, and 1.27mm. It offers single and double row configurations with top and side latch options, low insertion force terminals, and advanced keying to prevent mismatching. Designed for harsh environments, it ensures reliable mating with primary and secondary contact retention, and connector positioning assurance. Supported by proven design controls, it accommodates up to 22 AWG wires, providing high vibration resistance, locking strength over 75N, and a current capacity of 4A per contact.
AMPHENOL COMMUNICATIONS SOLUTIONS 10142344112KLF Crimp-to-Wire Connector Specifications:
- pitches: 1.80mm, 1.50mm, 1.27mm
- connector configurations: single and double row
- latch options: top and side latch
- wire compatibility: up to 22 AWG
- current rating: 4A per contact
- contact material: High Current Alloy with optional Tin and Gold/GXT plating
- housing material: High temperature thermoplastic, UL94V-0
- terminal insertion force: <3N
- terminal retention: >50N
- durability: 20 mating cycles for Sn, 100 for Au/GXT
- low-level contact resistance: <30mΩ
- insulation resistance: >100MΩ
- voltage rating: 48V
- dielectric withstand voltage: 500VAC
- temperature range: -40°C to +130°C
- operating temperature: -40°C to +130°C
- wire pullout force (0.35mm²): >50N
Buy the Buy Amphenol Minitek MicroSpace Crimp-To-Wire Part Number 10142344112KLF Online
Purchase the Minitek MicroSpace™ Crimp-to-Wire connector online today and ensure high-performance, durable connections for harsh environments. Its compact design, versatile configurations, and high vibration resistance make it ideal for various applications like sensors, camera clusters, HVAC, and power steering systems. With features like low insertion force terminals, keying to prevent mismatching, and high current capacity, this connector guarantees secure, reliable connections. Order now for fast delivery and experience seamless assembly, robust construction, and compliance with LV214 Severity-2 standards.
Buy Amphenol Minitek MicroSpace Crimp-To-Wire connector now and experience unmatched reliability and performance suited for harsh environments and high vibration applications.
