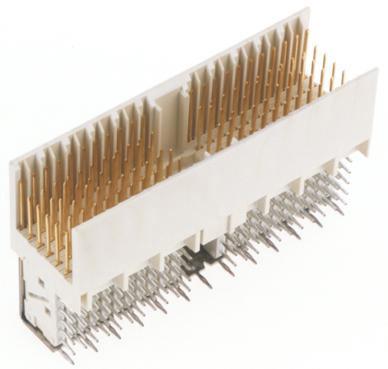

AMPHENOL COMMUNICATIONS SOLUTIONS HM2J07PE5118N9LF Hard Metric Connector
Millipacs 2MM hard metric right angle header connectors are designed for board-to-board and backplane connections in industrial, communication, and computing applications. Featuring various types (A, B, C, B19, B22, AB22, AB25) with options for shielding, cable latch lock, and customizable contact patterns, these connectors operate from -55°C to +125°C. They support high-density configurations with multiple signal pins, press-fit termination, and come with optional top shielding. Suitable for embedded systems, CPCI racks, and high-end routers, ensuring reliable signal integrity and durable performance.
AMPHENOL COMMUNICATIONS SOLUTIONS HM2J07PE5118N9LF Hard Metric Connector Specifications:
- Operating temperature: -55°C to +125°C
- Operating current: +1.5A at 20°C, +1.0A at 70°C
- Contact resistance: 20m max.
- Insulation resistance: 10^4 MΩ min.
- Contact mating lengths: 3.7mm, 5.35mm, 6.85mm, 8.35mm
- Number of signal pins: Variants with 55, 95, 110, 125 signals
- Row configuration: 5 rows
- Termination: Press-fit
- Housings: With cable latch lock, optional top shielding
- Material: Durable thermoplastic housing
- Performance level: 2; 250 matings maximum
- Current per contact: Up to 1.5A
- Suitable for applications: Backplanes, embedded computers, high-end routers
- Compliance: UL Listed and CSA Certified (if applicable)
Buy the Buy FCI Millipacs Hard Metric Right Angle Connectors Part Number HM2J07PE5118N9LF Online
Order the FCI Millipacs Hard Metric connector HM2J07PE5118N9LF now to experience seamless, high-density PCB connections with press-fit termination and optional shielding. Designed for harsh industrial environments, these connectors support a variety of configurations including Type A, B, C, B19, B22, AB22, and AB25, ensuring compatibility with diverse systems. Featuring a durable housing with cable latch locks and operating from -55°C to +125°C, they guarantee reliable performance in demanding electronic and communication applications. Buy online today for fast delivery and bulk discounts.
Get FCI Millipacs HM2J07PE5118N9LF today—built for high-density, reliable connections in industrial and communication applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS HM2J07PE5118N9LF?
You can click on the BUY or RFQ button to purchase HM2J07PE5118N9LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part HM2J07PE5118N9LF?
You can download the HM2J07PE5118N9LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of HM2J07PE5118N9LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
