AMPHENOL COMMUNICATIONS SOLUTIONS 1014270704LF Power Connector
The Minitek Pwr 5.70mm connector system by Amphenol ICC provides a versatile power solution capable of handling up to 23A per contact. Designed for wire-to-board applications, it supports wire gauges from 16 to 12 AWG and features polarized mating to prevent mis-mating. Crafted with UL94V-0 rated, halogen-free LCP housing, this system ensures high environmental durability, mechanical stability, and safety compliance. Its high-current contacts, secure locking mechanism, and robust materials make it ideal for appliances, industrial, and communication equipment requiring reliable power connections under varied operating conditions.
AMPHENOL COMMUNICATIONS SOLUTIONS 1014270704LF Power Connector Specifications:
- Current Rating: Up to 23A per contact
- Wire Gauge Range: 16 - 12 AWG
- Operating Temperature: -40°C to 120°C (Gold Plated), -40°C to 105°C (Tin Plated)
- Housing Material: UL94V-0 LCP and Nylon 66
- Contact Material: High-conductivity copper, optional tin or gold plating
- Voltage Rating: 600V AC/DC
- Mechanical Durability: 25 cycles (tin plated), 200 cycles (gold plated)
- Mating Force: Tin plated 6.8N, Gold plated 6.0N
- Unmating Force: Tin plated 6.5N, Gold plated 5.6N
- Insulation Resistance: ≥ 1000 MΩ
- Dielectric Voltage: 2200V AC
- Flammability: UL94V-0, halogen-free
- Certification: UL (€66906), TUV (B171234414032)

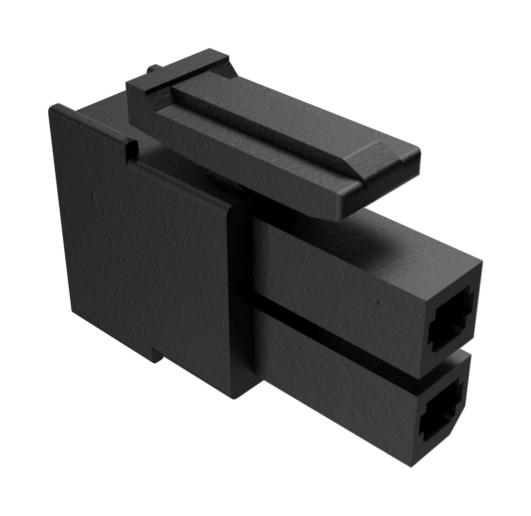

Buy the Buy Amphenol ICC Minitek Pwr 5.70mm Part Number 1014270704 Online
Secure your power needs with the Amphenol ICC Minitek Pwr 5.70mm connector system, supporting up to 23A per contact for demanding industrial, appliance, and communication applications. Its design includes polarized mating, UL94V-0 flammability rated housing, and compatibility with wire gauges from 16 to 12 AWG. Engineered with durable materials, high mechanical stability, and compliance with international safety standards, this system guarantees safe, reliable, and environmentally friendly power connections for a wide range of electronic devices and systems.
Order your Amphenol ICC Minitek Pwr 5.70mm 1014270704 today and ensure reliable high-current power connections in your industrial or appliance projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 1014270704LF?
You can click on the BUY or RFQ button to purchase 1014270704LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 1014270704LF?
You can download the 1014270704LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 1014270704LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
