AMPHENOL COMMUNICATIONS SOLUTIONS 1014270804100LF Power Connector System
The Minitek Pwr 5.70mm Connector System is a high-current, wire-to-board solution designed for reliable power applications. It supports current ratings up to 23A per contact and wire gauges from 16 to 12AWG. The system features polarized mating to prevent mis-mating, and its rugged housing ensures secure connections in diverse environments. Made with UL94V-0 flammability-rated materials and halogen-free resins, it offers excellent durability, environmental resistance, and compliance with international safety standards, making it suitable for household appliances, industrial equipment, and networking devices.
AMPHENOL COMMUNICATIONS SOLUTIONS 1014270804100LF Power Connector System Specifications:
- Current Rating: Up to 23A per contact
- Wire Gauge Range: 16 - 12 AWG
- Materials: High-conductivity copper, nylon 66, LCP
- Operating Temperature: -40°C to 120°C (gold plated), -40°C to 105°C (tin plated)
- Voltage Rating: 600V AC/DC
- Insulation Resistance: 1000 MΩ minimum
- Contact Resistance: Tin plated 10 mΩ, gold plated 5 mΩ
- Durability: Tin plated 25 cycles, gold plated 200 cycles
- Flammability: UL94V-0
- Certifications: UL approval B169906, TUV approval B171234414032
- Mechanical: Mating force 6.8N (tin), 6.0N (gold); Unmating force 6.5N (tin), 5.6N (gold)

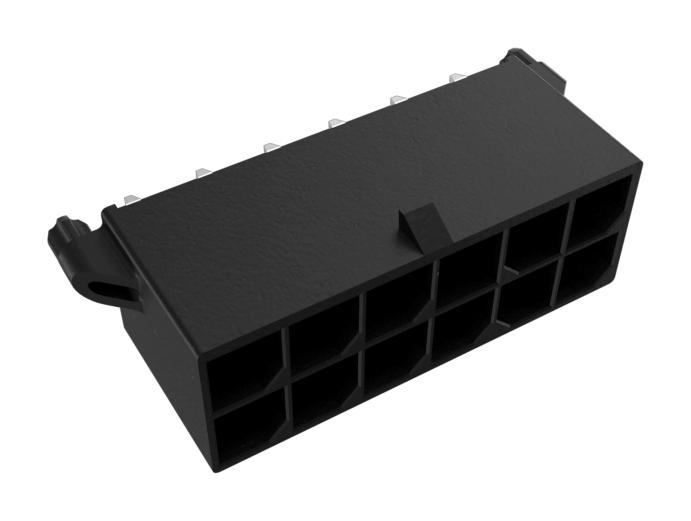

Buy the Amphenol Series Pwr 5.70mm Power Connector: 1014270804100LF
Discover the Amphenol Power Connector System built for robust power delivery and secure wire-to-board connections. With a current rating up to 23A per contact and wire gauge compatibility from 16 to 12AWG, this system ensures reliable performance across various applications. Its polarized mating design prevents mis-mating, while durable UL94V-0 rated housing materials withstand harsh environments. Perfect for industrial, household, and network equipment, it combines safety, environmental compliance, and ease of installation, making it an ideal choice for OEMs and technicians upgrading power distribution systems.
Buy Amphenol 1014270804100LF now and experience unmatched reliability and performance in high-current power connections.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 1014270804100LF?
You can click on the BUY or RFQ button to purchase 1014270804100LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 1014270804100LF?
You can download the 1014270804100LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 1014270804100LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
