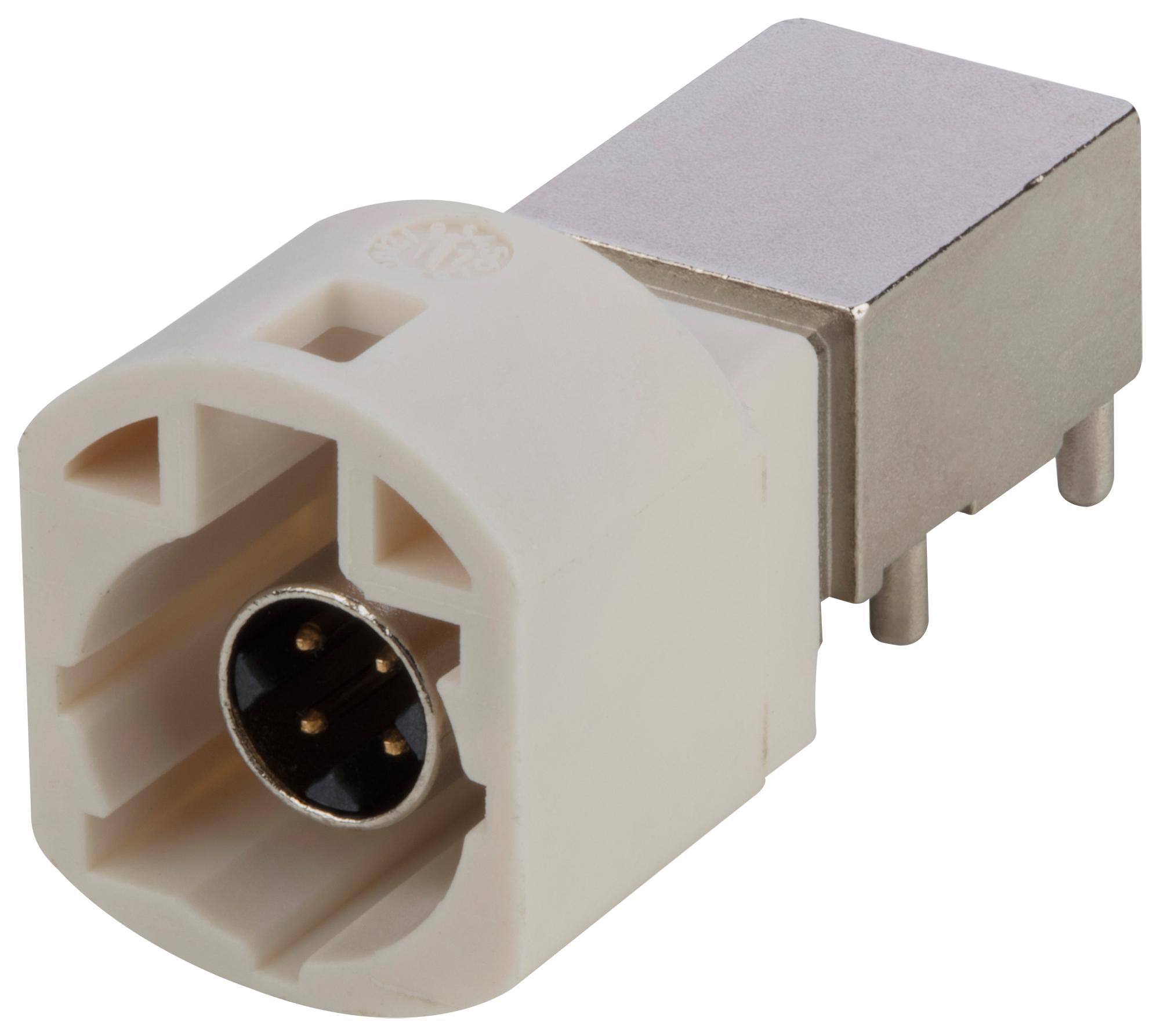

AMPHENOL COMMUNICATIONS SOLUTIONS HSDNARPPCB12B Automotive Connector System
The HSD Connector System by Amphenol offers a fully shielded, low-profile interconnect solution designed for automotive applications such as LVDS cameras, USB, and IEEE 1394 systems. Compliant with USCAR-2, it features enhanced retention force, resistance to reflow soldering temperatures, and a simple, patent-protected assembly design. Made with high-temperature polymers, zinc alloys, stainless steel, and copper alloys, it ensures durability, high electrical performance, and environmental resilience. Suitable for automated assembly, it supports critical automotive and industrial electronic connections with reliable locking and coding features.
AMPHENOL COMMUNICATIONS SOLUTIONS HSDNARPPCB12B Automotive Connector System Specifications:
- Housing Material: High Temperature Polymer, UL94V-0
- Dielectrics: High Temperature Polymer, UL94V-0
- Contacts: Copper Alloy
- Die Casting: Zinc Alloy
- Cover: Zinc Alloy
- Baffle: Stainless Steel
- Insertion Force: 35N max.
- Extraction Force without Locking Latch: 5N min.
- Durability: 25 Cycles
- Contact Resistance: 20 mQ max. per pin
- Isolation Resistance: >100 MQ at 500 VDC
- Dielectric Withstanding Voltage: AC 250Vrms
- Temperature Range: -40°C to +105°C
- Environmental Cycling: 40 Cycles from -40°C to +105°C, 90-95% RH
- High Temp Static Exposure: 105°C for 1008 hours
- Compliance: USCAR-2, ISO/TS, ROHS, REACH/SVHC, Low Halogen
- Packaging: Tray or Tape and Reel upon request
Buy the Amphenol HSDNARPPCB12B – Reliable Automotive Connector for Industrial Applications
Purchase the HSD Connector System online today and benefit from high durability, excellent electrical performance, and easy automated assembly. Designed for automotive and industrial applications, this shielded, low-profile connector ensures secure and reliable connections for LVDS, USB, and IEEE 1394 systems. Made with high-temperature and high-strength materials, it withstands environmental stress and reflow soldering temperatures. Compatible with critical automotive standards like USCAR-2, it features enhanced retention, self-aligning design, and multiple coding options. Get yours now for high-quality, industry-grade electronic connections.
Order your Amphenol series HSDNARPPCB12B connector today and ensure reliable, high-performance connections in your automotive and industrial projects.
