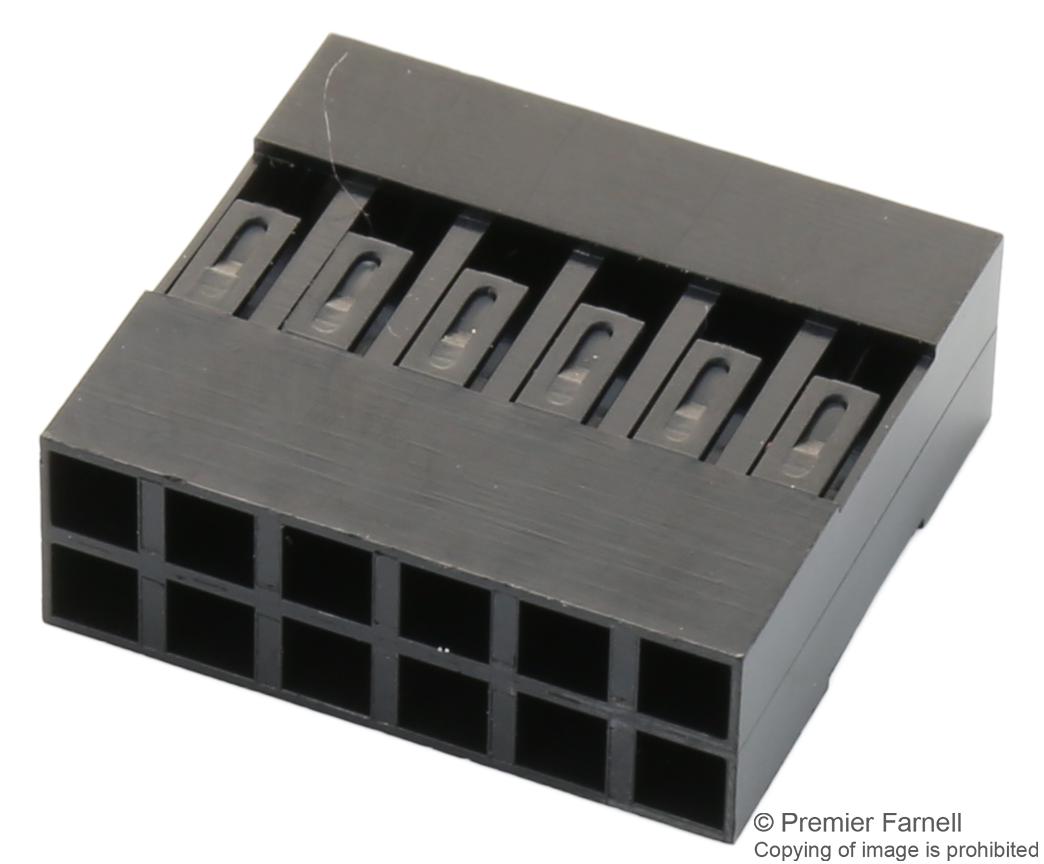

AMPHENOL COMMUNICATIONS SOLUTIONS 65043031LF Wire-to-Board Connector
The PV wire-to-board connector system offers high reliability and durability with dual-metal receptacle contacts maintaining consistent contact pressure through 1000 mating cycles. Suitable for industrial, medical, automotive, and data communication applications, it features shrouded headers, polarized MINI-LATCH housings for mis-mating prevention, and customizable spring forces for varied insertion and withdrawal forces. Made from high-quality materials, it supports wire sizes up to 1.52mm diameter, with a maximum voltage of 1000V RMS, and endures temperatures from -40°C to +105°C. Compatible with semi-automatic and bench crimping tools for efficient assembly.
AMPHENOL COMMUNICATIONS SOLUTIONS 65043031LF Wire-to-Board Connector Specifications:
- Contact Material: Brass body and beryllium copper spring
- Contact Plating: Gold or pure tin over nickel
- Housing Material: Modified polyphenylene oxide UL94V-0
- Electrical Rating: 3.0A per circuit, withstand voltage 1000V RMS
- Temperature Range: -40°C to +105°C
- Insulation Resistance: >10000MQ (wire connector), >5000MQ (header)
- Contact Resistance: <2mQ (LLCR)
- Mating Force: 75g to 450g depending on spring force
- Un-mating Force: 75g to 175g depending on spring force
- Durability: 1000 mating cycles
- Wire Size: Up to 1.52mm diameter
- Applicable for 0.025 inch (0.635mm) square posts
- Available in single and double row configurations, polarized housing options
- Certifications: URE66906, CSALR46923
- Applicator tooling supports 18-36 AWG wires, with various crimping machines
Buy the FCI Series MINI-LATCH PV Wire-to-Board: 65043031LF
Purchase the FCI PV wire-to-board connector 65043031LF online today and ensure high reliability for your industrial, automotive, or medical projects. Designed for high cycle durability, it features polarized MINI-LATCH housings, dual-metal contacts, and support for wire sizes up to 1.52mm diameter. The connector withstands voltages up to 1000V RMS, operates between -40°C to +105°C, and guarantees secure, gas-tight connections. Capable of supporting up to 1000 mating cycles, it is ideal for automated assembly and critical electronic systems needing reliable, long-term connections.
Get FCI Series MINI-LATCH PV Wire-to-Board connector 65043031LF today—built for precision and long-lasting durability in demanding applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 65043031LF?
You can click on the BUY or RFQ button to purchase 65043031LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 65043031LF?
You can download the 65043031LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 65043031LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
