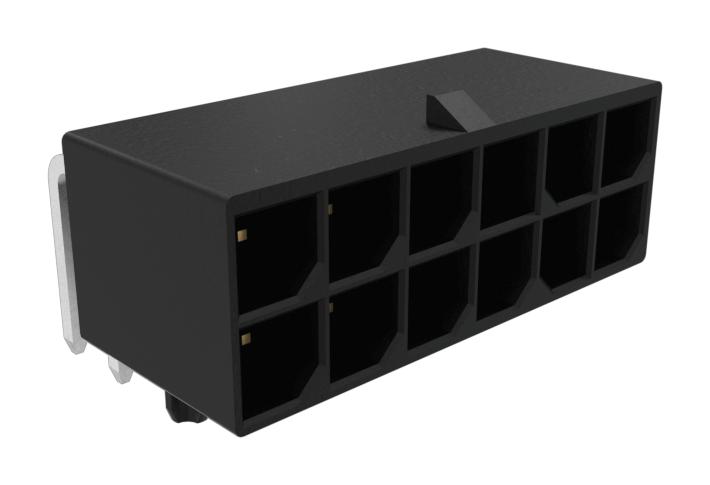

AMPHENOL COMMUNICATIONS SOLUTIONS 1014699710000LF Power Connector System
The AMPHENOL Minitek Pwr 5.70 connector system provides a comprehensive solution for power applications, designed for wire-to-board connections. It boasts a high current rating of up to 23A per contact and supports wire gauges from 16 to 12AWG. Key features include polarized mating geometry to prevent mis-mating, a wide operating temperature range (-40°C to 105°C), and a scoop-proof housing to protect terminals. This system is suitable for various applications, including rack-mount servers, medical equipment, and industrial control systems, offering a reliable and efficient power connection.
AMPHENOL COMMUNICATIONS SOLUTIONS 1014699710000LF Power Connector System Specifications:
- Current Rating: Up to 23A/contact
- Operating Temperature Range: -40°C to 105°C (Tin Plated)
- -40°C to 120°C (Gold Plated).”, : Voltage Rating: 600V AC (RMS)/DC
- Dielectric Withstand Voltage: 2200V AC
- Contact Resistance: Tin plated 10m Ω / gold plating 5m Ω max.
- Low Level Contact Resistance: 2m Ω max. (Initial)
- Insulation Resistance: 1000M Ω min.
- Mating Force: 6.8N (Tin plated), 6.0N (Gold plated) per circuit max.
- Unmating Force: 6.5N (Tin plated), 5.6N (Gold plated) per circuit max.
- Durability: 25 cycles (Tin plated), 200 cycles (Gold plated)
- Material (Board Connector): High-conductivity copper with optional tin and gold plating
- Material (Header Housing): LCP, black & natural, UL 94V-0
- Material (Receptacle Housing): Nylon 66, black & natural, UL 94V-0 & UL 94V-2
- Material (Crimping Terminal): High-conductivity copper with optional tin and gold plating
- UL Approval: E66906
- TUV Approval: B171234414032
- Flammability Rating: UL94V-0
- Halogen-free: Yes
- RoHS Compliant: Yes
- Application Specification: GS-20-0687
- Packaging (PCB Header): Tray/tape and reel
- Packaging (Receptacle Housing): Bag
- Packaging (Crimping Terminal): Reel
Buy the 10146997-10000LF AMPHENOL COMMUNICATIONS SOLUTIONS Power Connector System | myMectronic
Purchase the AMPHENOL 10146997-10000LF Power Connector System securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 1014699710000LF?
You can click on the BUY or RFQ button to purchase 1014699710000LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 1014699710000LF?
You can download the 1014699710000LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 1014699710000LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
