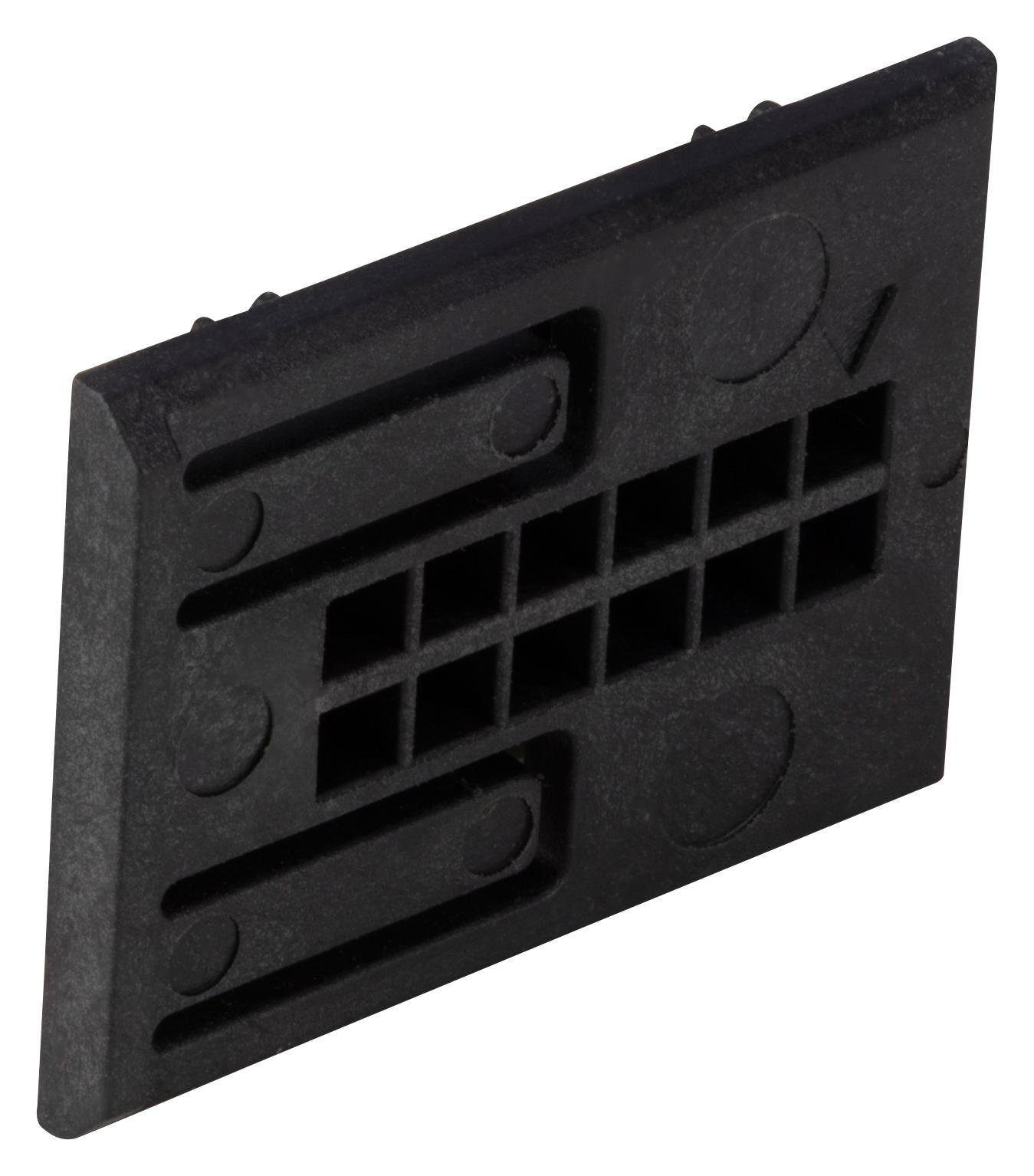

AMPHENOL COMMUNICATIONS SOLUTIONS 10148136012LF 2.00mm Blind Mate Interface Connector
The AMPHENOL Minitek 2.00mm Blind Mate Interface (BMI) connector is a versatile solution designed for a wide range of applications. It allows for misalignment and provides floating capabilities, making it ideal for panel-to-board connections. The connector features a robust design with a polarized mating geometry, passive locking, and scoop-proof housings to prevent damage. It is available in various configurations and supports multiple manufacturing processes, offering a comprehensive solution for diverse industrial needs.
AMPHENOL COMMUNICATIONS SOLUTIONS 10148136012LF 2.00mm Blind Mate Interface Connector Specifications:
- Header Housing Material: High temperature thermoplastic, natural
- Receptacle Housing Material: High temperature thermoplastic, black
- Crimping Terminal Material: Copper alloy
- Plating: Gold/GXT on contact area, tin on tail, nickel under layer
- Catching: +/-2mm in x and y axes
- Misalignment with Floating Option: +/-1mm or 15° in x and y axes, +/-0.3mm in z axis
- Low Level Contact Resistance: 20m Ω max.
- Insulation Resistance: 1000m Ω min.
- Voltage Rating: 200Vrms
- Current Rating: 2A per contact
- Dielectric Withstanding Voltage: 650V AC
- Temperature Rise: 30°C max.
- Glow Wire Ignition Temperature (GWIT): per IEC 60695-2-13
- Glow Wire Flammability Index (GWFI): per IEC 60695-2-12
- Terminal Insertion Force: 2N max. per contact
- Durability: 100 mating cycles for gold plating
- Amphenol Product Specification: GS-12-1470
- Operating Temperature: -40°C to +125°C
- Packaging Header: Tube packaging / Tape & Reel
- Packaging Receptacle: Bag
- Packaging Terminal: Reel
- Crimp Tooling (24AWG to 22AWG): RCY21153W, Mini Application RCY20036
Buy the 10148136-012LF AMPHENOL COMMUNICATIONS SOLUTIONS 2.00mm Blind Mate Interface Connector | myMectronic
Securely purchase the AMPHENOL COMMUNICATIONS SOLUTIONS 10148136-012LF connector and ensure reliable connectivity for your applications.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10148136012LF?
You can click on the BUY or RFQ button to purchase 10148136012LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10148136012LF?
You can download the 10148136012LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10148136012LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
