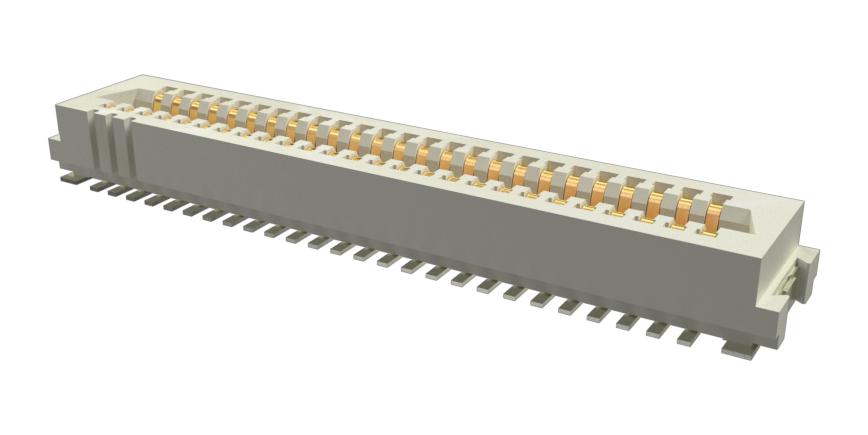

AMPHENOL COMMUNICATIONS SOLUTIONS 101625813134151LF board-to-board connector
The Conan Lite 1.00mm connector series provides a secure, high-speed, and reliable board-to-board connection solution suitable for a variety of electronic applications. Featuring a metal down feature, polarized housings, and an audible click, these connectors ensure correct mating and secure attachment on PCB assemblies. Designed with high-temperature thermoplastic housing and gold-flashed copper alloy contacts, they support data transmission rates up to 8Gb/s, operate within -55°C to +125°C, and are suitable for auto reflow processes. Available in multiple configurations with protected terminals and polarization for application versatility and dependable performance in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 101625813134151LF board-to-board connector Specifications:
- Housing: High temperature thermoplastic LCP
- Terminal Material: Copper alloy with gold flash
- Current Rating: 1.0A continuous
- Contact Resistance: 30mΩ max.
- Withstanding Voltage: 500V AC RMS 60Hz
- Durability: 30 mating cycles
- Mating Force: 125g per contact max.
- Un-mating Force: 35g per contact min.
- Operating Temperature Range: -55°C to +125°C
- Product Specification: GS-12-0977
Buy the Amphenol Series Conan Lite 1.00mm Connector: 101625813134151LF
Secure your electronic designs with the Conan Lite 1.00mm connector series by Amphenol. These connectors offer high-speed data transfer up to 8Gb/s, ensuring fast and reliable connections in applications such as LED reading lights, control units, and servers. Featuring a robust metal down feature, polarized housings, and an audible click for correct mating, they support auto reflow processes and operate within -55°C to +125°C. With multiple configurations available, they provide application flexibility, durability, and secure PCB attachment for demanding environments.
Buy Amphenol Conan Lite 1.00mm connector now and experience unmatched reliability and high-speed data transmission for your electronic projects.
