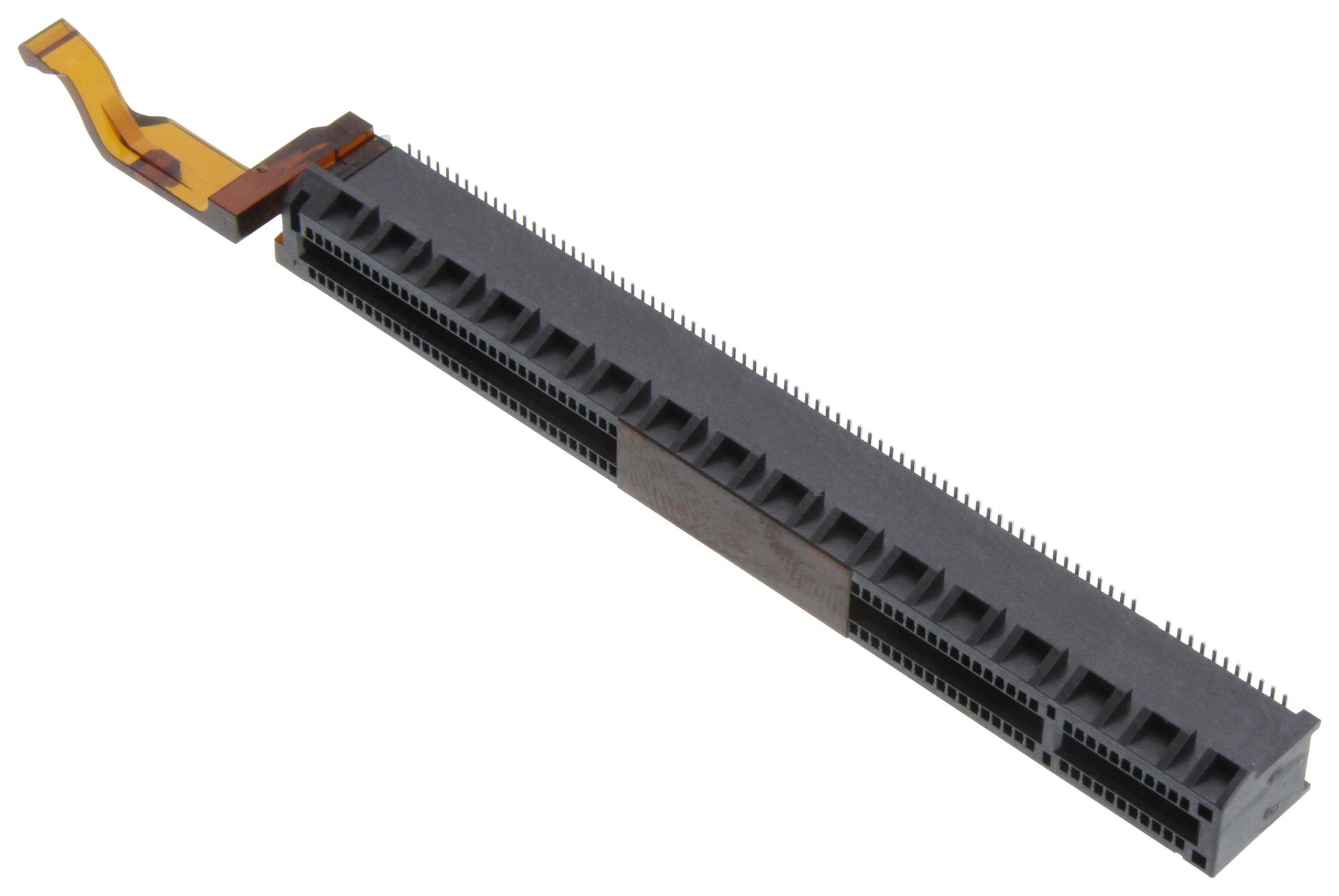

AMPHENOL COMMUNICATIONS SOLUTIONS 10150775113Y0LF PCIe M.2 Card Edge Connector
Amphenol ICC’s PCIe M.2 Gen 3 and Gen 4 connectors provide 67 contacts on a 0.50mm pitch, occupying less board space and supporting higher data rates. Designed for PCIe 3.0, USB 3.0, and SATA 3.0 applications, these connectors are ideal for tablets, laptops, and low-profile storage and server applications. They offer various connector height and keying options, accept angled insertion, and support both single and double-sided modules, enabling higher data rate transmission. The connectors are available in right-angle and vertical orientations, providing flexibility for diverse designs.
AMPHENOL COMMUNICATIONS SOLUTIONS 10150775113Y0LF PCIe M.2 Card Edge Connector Specifications:
- Contact: Copper alloy with gold plating
- Contact Finish: Compatible with lead-free soldering process
- Housing: Complies with UL 94 V-0
- Low Level Contact Resistance: 55m Ω max. (initial), 20m Ω max. change allowed
- Insulation Resistance: >5 x 108 Ω at 500V DC
- Dielectric Withstanding Voltage: >300V AC (RMS) at sea level
- Current Rating: 0.5A/Power contact (continuous)
- Voltage Rating: 50V AC per contact
- Durability: 25-60 mating cycles (normal M.2), 5000 mating cycles (with 30Au)
- Insertion Force: 20N max.
- Shock: 250 G (notebook), 285 G (tablet)
- Vibration: EIA-364-1000 Test group 3
- Operating Temperature: -40°C to +80°C
- Useful Field Life: Three (3) years
- Data Rate: Up to 16Gb/s (Gen 4)
