AMPHENOL COMMUNICATIONS SOLUTIONS 10143250112LF Power Connector System
The Amphenol Minitek Pwr 5.7 connector system is a versatile, high-current solution designed for power applications, supporting up to 23A per contact. Featuring a wire-to-board design, polarized mating geometry, and scoop-proof housing, it offers reliable performance across a wide temperature range of -40°C to 105°C. Made from UL94 V-0 flammability rated nylons and copper alloys, the connectors ensure secure mating, environmental resistance, and compliance with international standards. Suitable for diverse markets, including telecommunications, household appliances, and industrial equipment, the system guarantees durability and safety in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 10143250112LF Power Connector System Specifications:
- Current Rating: Up to 23A per contact
- Voltage Rating: 600V AC/DC
- Operating Temperature: -40°C to 105°C
- Contact Material: High-Conductivity Copper with optional Tin and Gold plating
- Housing Material: Nylon 66 & LCP, UL94V-0 rated
- Crimping Terminal Material: High-Conductivity Copper with optional Tin and Gold plating
- Mating Force: Tin plated 6.8N, Gold plated 6.0N
- Unmating Force: Tin plated 6.5N, Gold plated 5.6N
- Durability: Tin plated 25 cycles, Gold plated 200 cycles
- Insulation Resistance: 1000MQ min.
- Low Level Contact Resistance: 2mΩ max.
- Packaging: PCB Header in tray, receptacle in bag, crimping terminal in reel
- Certifications: UL approval, TUV approval
- Material: Nylon 66 & LCP for housing, copper alloys for contacts
- Environmental Compliance: RoHS, halogen-free, lead-free
- Environmental Resistance: Salt spray, gas corrosion resistance

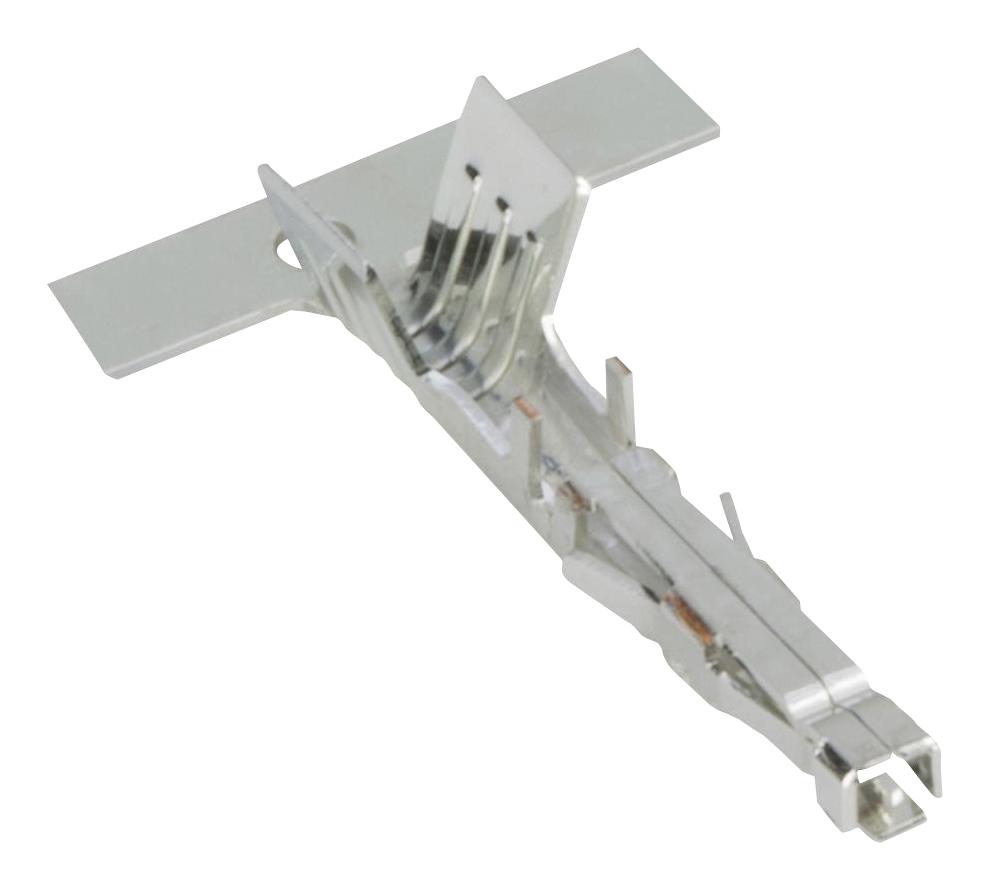

Buy the Amphenol Series Minitek Pwr 5.7 High Current Connector: 10143250112LF
Secure your power projects with the Amphenol Series Minitek Pwr 5.7 high-current connector system. Designed for wire-to-board applications, it supports up to 23A per contact with wide temperature tolerance from -40°C to 105°C, and offers robust, corrosion-resistant materials. Its polarized design prevents mis-mating, making installation straightforward. Suitable across various industries like telecommunications, industrial, and household appliances, this connector guarantees durability, safety, and compliance with international standards. Buy online now for dependable power connectivity designed for demanding environments.
Order your Amphenol Series Minitek Pwr 5.7 connector today and ensure reliable power connections for your high-current applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10143250112LF?
You can click on the BUY or RFQ button to purchase 10143250112LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10143250112LF?
You can download the 10143250112LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10143250112LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
