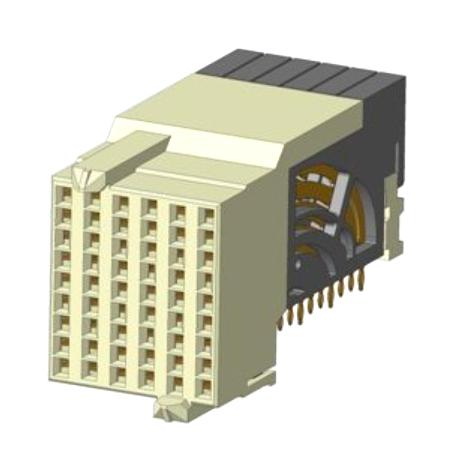

AMPHENOL COMMUNICATIONS SOLUTIONS 10155256101LF Backplane Connector System
The AirMax VSe[®] connector system is a next-generation solution designed to provide a migration path for high-speed data transmission. Combining FCI technologies, it offers a shieldless design with closely edge-coupled differential pairs, resulting in low loss and crosstalk. Its backwards compatibility with existing AirMax VS[®] connectors allows for cost-effective upgrades and the preservation of critical pin assignments, enabling the use of legacy and future module cards. Target markets include communications, switches, routers, and data servers.
AMPHENOL COMMUNICATIONS SOLUTIONS 10155256101LF Backplane Connector System Specifications:
- contacts: High performance Copper Alloy
- contact_finish: Performance-based plating
- housing: High Performance Thermoplastic, UL94-V0
- current_rating: 0.5 A/contact
- contact_resistance: ≤60 mΩ initial in backplane application, ≤120 mΩ initial in coplanar application
- insertion_loss: see graph below
- crosstalk: see graph below
- durability: 200 cycles
- mating_force: 0.50N max./contact
- unmating_force: 0.15N min./contact
- compliant_pin_insertion_force_0.4mm_hole: 15N max.
- compliant_pin_insertion_force_0.5mm_hole: 30N max.
- impedance: 100 OHMS
- application: GS-20-0305
- product: GS-12-0956
