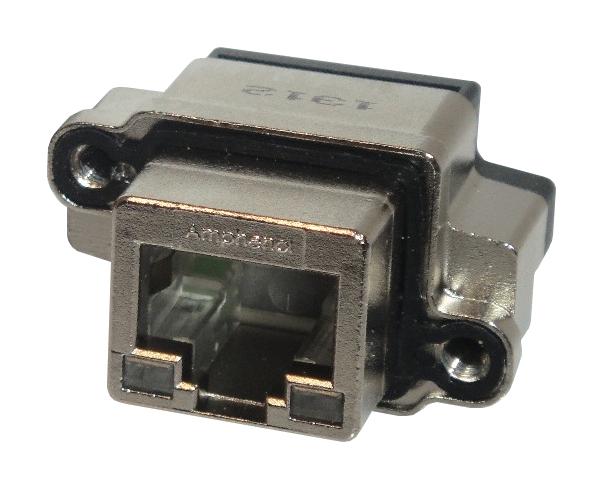

AMPHENOL COMMUNICATIONS SOLUTIONS MRJR5480MF Rugged RJ45 Connector
The MRJR series Rugged RJ45 connectors by Amphenol are designed for harsh environments, featuring IP67 sealing against water and dust, die cast zinc housings, and a wide operating temperature range from -55°C to +105°C. Suitable for industrial, automotive, communication, medical, and military applications, these connectors offer high durability with shock and vibration resistance, multiple mounting options, and conform to international standards like IEC 60529 and RoHS compliance. They ensure reliable Ethernet connections in extreme conditions while protecting equipment from environmental ingress and mechanical damage.
AMPHENOL COMMUNICATIONS SOLUTIONS MRJR5480MF Rugged RJ45 Connector Specifications:
- External Shell: Die Cast Zinc, Nickel Plated
- Front Insert: Clear Polucarbonate, UL94V-0
- Rear Inserts: High Temperature Resistant Nylon, UL94V-0
- Contacts: Phosphor Bronze, Gold over Nickel, Matte Tin over Nickel
- Current Rating: 1.5A max per contact
- Water & Dust Protection Level: IP67 IEC 60529
- Operating Temperature: -55°C to +105°C
- Durability: 2500 Mating Cycles
- Shock Resistance: No discontinuity > 11s under test conditions
- Vibration Resistance: No discontinuity over 6 hours at 10g, 10-500Hz
- Dielectric Withstanding Voltage: 1000 VAC rms between contacts
Buy the Buy Amphenol Rugged RJ45 Part Number MRJR5480MF Online
Enhance your industrial or harsh environment networking with the Rugged RJ45 connector from Amphenol. Featuring IP67 sealing, die cast zinc housing, and a wide temperature tolerance, this connector is built to withstand water, dust, shocks, and vibrations. Perfect for automotive, telecommunications, medical, and military uses, it ensures reliable data transfer and long-term durability. Easily replaced with standard footprints, it offers multiple mounting options, making installation straightforward. Secure your equipment with this rugged, high-quality Ethernet connector available for quick online purchase to meet your project needs.
Order your Amphenol Series MRJR5480MF rugged industrial RJ45 connector today and enjoy dependable, high-performance Ethernet connections in harsh environments.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS MRJR5480MF?
You can click on the BUY or RFQ button to purchase MRJR5480MF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MRJR5480MF?
You can download the MRJR5480MF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of MRJR5480MF?
AMPHENOL COMMUNICATIONS SOLUTIONS
