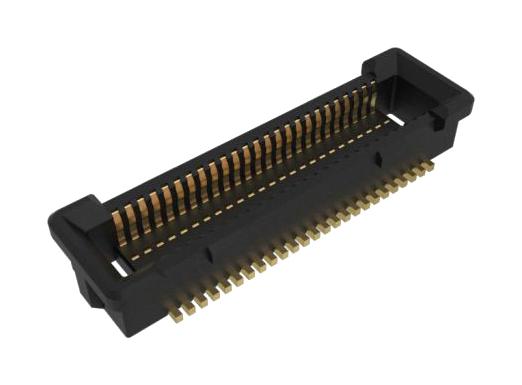

AMPHENOL COMMUNICATIONS SOLUTIONS 10156000051100LF 0.50mm Self-Alignment Connector
The BergStak 0.50mm self-alignment board-to-board connector provides a compact and reliable solution for connecting parallel boards. Its 0.50mm fine pitch design maximizes signal density, while the self-alignment feature simplifies mating and reduces assembly costs. The scoop-proof housings protect terminals from damage, ensuring consistent performance and improved manufacturing quality. Ideal for automotive cameras, 5G AAU, home automation, and factory automation applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 10156000051100LF 0.50mm Self-Alignment Connector Specifications:
- Material: Housing: High temperature thermoplastic LCP, black (UL94V-0)
- Product Specification: GS-12-1298
- Terminal base material: Tape & Reel
- Receptacles: Copper alloy
- Headers: Copper alloy
- Current Rating: 0.5A per contact
- Voltage Rating: 100V AC
- LLCR Initial: 30m Ω max.
- LLCR After test: 50m Ω max.
- Insulation Resistance: 1000M Ω min.
- Support speed: PCIe Gen1 with 2.5Gb/s
- Durability: 50 cycles
- Mating Force: 0.8N max. per contact
- Un-mating Force: 0.15N min. per contact
- Contact Retention Force: 1N min. per contact
- Operating temperature Range: -40°C ~ 125°C
- Salt Spray Test: 5±1% salt concentration 48±4 hours 35±2°C
- Position: 50
- Plating Option: Contact Area: 2μin Au over 15μin min. Pd-Ni; Solder Area: 2μin min. Au
Buy the 10156000-051100LF AMPHENOL COMMUNICATIONS SOLUTIONS 0.50mm Self-Alignment Connector | myMectronic
Securely purchase the BergStak 0.50mm Self-Alignment Connector for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10156000051100LF?
You can click on the BUY or RFQ button to purchase 10156000051100LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10156000051100LF?
You can download the 10156000051100LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10156000051100LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
