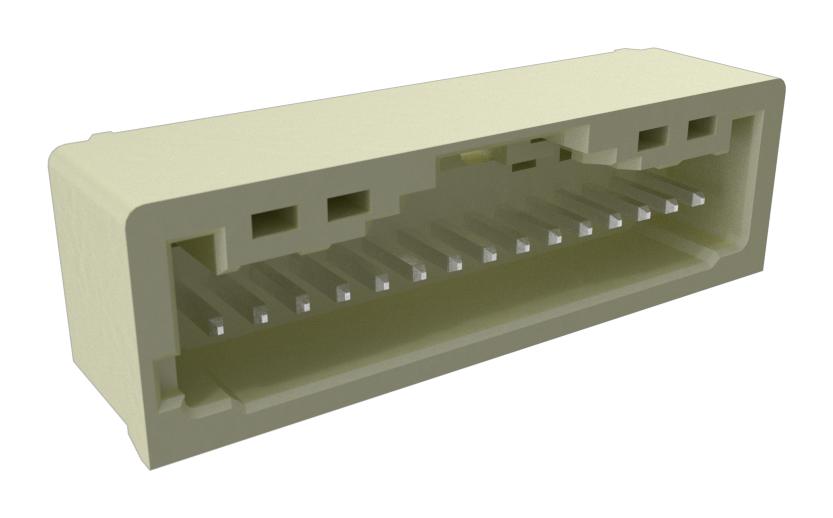

AMPHENOL COMMUNICATIONS SOLUTIONS 101575470006SR1LF Wire-to-Board Connector
The Minitek Multipitch 1.25mm wire-to-board connector system offers a compact, reliable solution ideal for miniaturized electronic applications. It supports 2 to 15 positions in single row and 10 to 30 in double row configurations, with active latching, TPA, and CPA features. Made with UL 94V-0 rated PA66 housing and phosphor bronze terminals, it provides a current capacity of 1A, with operating temperatures from -40°C to +105°C. Suitable for automotive, industrial, robotics, and home automation projects, ensuring secure, high-quality connections.
AMPHENOL COMMUNICATIONS SOLUTIONS 101575470006SR1LF Wire-to-Board Connector Specifications:
- Pitch: 1.25mm
- Housing Material: PA66 UL 94V-0
- Terminal Material: Phosphor bronze alloy (tin plated)
- Current Rating: 1A
- Voltage Rating: 50V AC/DC
- Insulation Resistance: 100MQ min.
- Contact Resistance: < 40MQ
- Operating Temperature: -40°C to +105°C
- Wire Range: 26-28 AWG
- Durability: 30 cycles
- Housing Retention Force: 9.8N min.
- Mating/Un-mating Force: 4N/max per pin
- Certifications: UL approval available
- Packaging: Tape and reel for PCB header, bag for housing, reel for terminals
Buy the Buy Amphenol Minitek Multipitch 1.25mm Wire-to-Board Part Number 101575470006SR1LF Online
Enhance your electronic projects with the high-quality Amphenol Minitek 1.25mm wire-to-board connector system. Featuring a compact design, active latching, and optional TPA and CPA features, it ensures secure mating and reliable electrical connection for automotive, automation, robotics, and industrial applications. Made with UL-rated materials, it supports 1A current, has a wide operating temperature range, and is available in various configurations. Purchase online today for fast delivery and trusted performance to meet your specific connection needs.
Order your Amphenol Series101575470006SR1LF 1.25mm Wire-to-Board Connector today and give your electronics projects the dependable quality they deserve.
