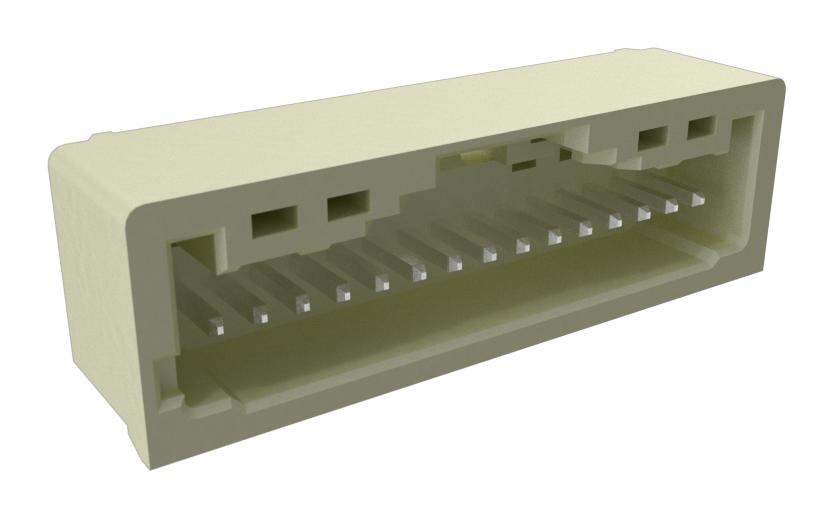

AMPHENOL COMMUNICATIONS SOLUTIONS 101575470015SR1LF Wire-to-Board Connector
The Minitek Multipitch 1.25mm Wire-to-Board Connector System offers a compact, reliable solution for various electronic applications including automation, control systems, and consumer devices. Designed with active latching, CPA, and TPA features, it ensures secure mating, proper terminal insertion, and prevents mismatching. Made from UL 94V-0 rated PA66 housing and phosphor bronze terminals, it supports up to 1A current, operates between -40°C and +105°C, and accommodates 28AWG to 26AWG wires. Suitable for diverse markets like robotics, home automation, and industrial equipment, it guarantees durability up to 30 mating cycles.
AMPHENOL COMMUNICATIONS SOLUTIONS 101575470015SR1LF Wire-to-Board Connector Specifications:
- Pitch: 1.25mm
- Housing Material: PA66 UL 94V-0
- Crimping Terminal Material: Phosphor bronze alloy, tin plated
- Current Rating: 1A
- Voltage Rating: 50V AC/DC
- Insulation Resistance: 100MQ min.
- Contact Resistance: < 40MQ
- Wire Gauge: 28AWG to 26AWG
- Operating Temperature: -40°C to +105°C
- Durability: 30 mating cycles
- Housing Retention Force: 9.8N min.
- Mating/Unmating Force: 4N max per pin
- Certifications: UL approval available
Buy the Amphenol 10157547 – Reliable Connector for Industrial Applications
Enhance your electronic assembly with the reliable Minitek Multipitch 1.25mm Wire-to-Board Connector System. With its compact design, active latching, CPA, and TPA features, it ensures secure connections and easy mating for a wide range of applications including robotics, home automation, and industrial control. Constructed from UL 94V-0 rated materials, supporting 28AWG to 26AWG wires and rated for 50V AC/DC at -40°C to +105°C, it offers durability for up to 30 mating cycles. Purchase online now for quick delivery and integration into your projects.
Buy Amphenol 10157547 now and experience unmatched reliability and efficiency in electronic connections and automation.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 101575470015SR1LF?
You can click on the BUY or RFQ button to purchase 101575470015SR1LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 101575470015SR1LF?
You can download the 101575470015SR1LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 101575470015SR1LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
