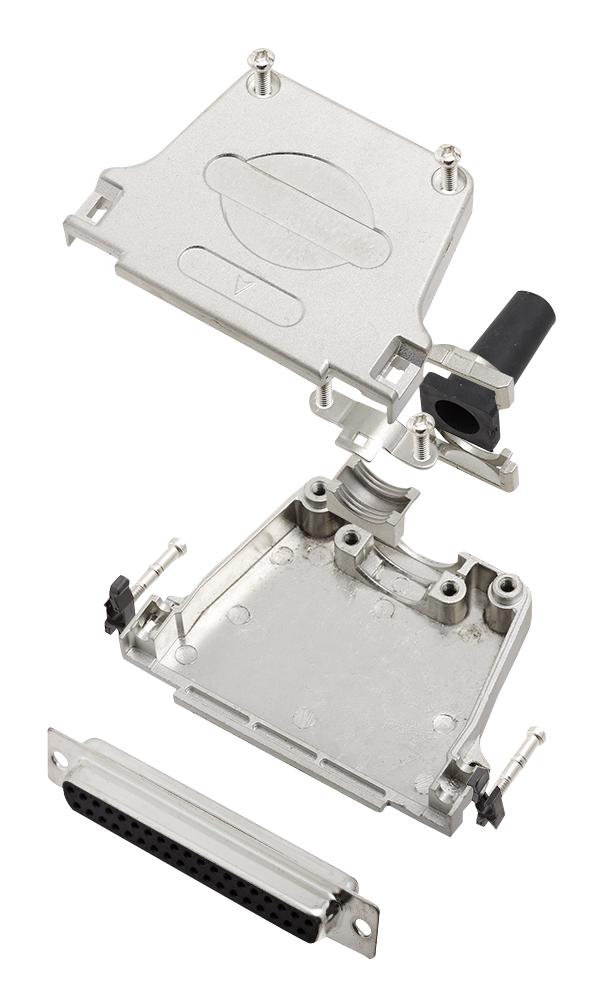

Amphenol-Communications-Solutions L17DTZF37RGL77SDC37S D-Sub Connector Kit
The D-Sub connector kit features a zinc, nickel-plated shell and glass-filled TP insulator with UL94 V-0 flame rating, designed for reliable industrial applications. It supports a wide operating temperature range from -45°C to +105°C and withstands voltages over 1000V RMS. With a current rating of 5A, the connector accommodates different cable sizes, offering excellent EMI shielding, re-openability, and spring-clip mounted jack screws. Available in 37-way configurations, it is suitable for high-performance electronic and industrial systems requiring durable and high-quality connectivity.
Amphenol-Communications-Solutions L17DTZF37RGL77SDC37S D-Sub Connector Kit Specifications:
- Material: Zinc, Nickel Plated
- Operating Temperature: -45°C to +105°C
- Cable Entry: Top Entry, UNC 4-40 (Standard)
- Cable O.D - Standard: 9-Way: Up to 6,5mm with grommet - 9,5mm without; 15-Way: Up to 6,5mm with grommet - 12,5mm without; 25-Way: Up to 8.0mm with grommet - 12,5mm without; 37-Way: Up to 9.0mm with grommet - 15,0mm without
- Standard D-Sub Solder Cup Shell: Steel, Tin Plated
- Insulator: Glass filled TP, UL94 V-0
- Contact Pins: Copper Alloy, Gold Flash over Ni
- Contact Plating: Gold Flash over Nickel
- Withstanding Voltage: >1000V RMS to 50 Hz for 1 minute
- Current Rating: 5A
- Insulator Resistance: >5000MQ min
- Sizes Available: 9, 15, 25, 37
- Dimensions (DimA / DimB / DimC): 31.6/39.5/15.2 mm (9-way), 40.0/41.0/15.2 mm (15-way), 53.7/47.5/15.2 mm (25-way), 70.2/48.0/15.2 mm (37-way)
Buy the Amphenol L17DTZF37 – Reliable D-Sub Connector for Industrial Applications
Secure your industrial connectivity solutions with the high-quality D-Sub connector kit from Amphenol. Designed for durability and excellent EMI shielding, this connector supports various cable sizes and features a zinc shell with nickel plating, making it ideal for rugged environments. It withstands voltages over 1000V and operates within temperatures from -45°C to +105°C. Easily re-openable and suitable for high-reliability applications, it offers excellent contact resistance, withstands tough conditions, and provides dependable performance in demanding industrial systems. Purchase online today for reliable connections.
Order your Amphenol series L17DTZF37 connector today and ensure dependable, high-performance connectivity in your industrial projects.
Frequently Asked Questions
Where can I buy Amphenol-Communications-Solutions L17DTZF37RGL77SDC37S?
You can click on the BUY or RFQ button to purchase L17DTZF37RGL77SDC37S from an authorized Amphenol-Communications-Solutions distributor.
How do I troubleshoot issues or seek technical support for part L17DTZF37RGL77SDC37S?
You can download the L17DTZF37RGL77SDC37S datasheet or visit the Amphenol-Communications-Solutions website for support.
Who is the manufacturer of L17DTZF37RGL77SDC37S?
Amphenol-Communications-Solutions
