AMPHENOL COMMUNICATIONS SOLUTIONS 10159559410221RLF power and signal connectors
The PowerStak and ComboStak board-to-board connectors are compact, hybrid solutions supporting high current and signal density for industrial and automotive applications. PowerStak® handles up to 20A per power blade with 2 to 10 positions, while ComboStak® combines signal and power in one high-reliability connector, supporting up to 12Gb/sec signal speed, with stack heights from 5mm to 20mm. Made from high-temperature LCP, these connectors feature reliable contact points, self-alignment, and meet environmental standards, ideal for space-saving power distribution and signal control in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 10159559410221RLF power and signal connectors Specifications:
- Housing: LCP UL94-VO
- Power contact: Copper alloy
- Signal contact: Copper alloy
- Hold down: Copper alloy
- Plating: Nickel under plate, contact area gold or GXT, solder tail gold or tin, hold down tin
- Current Rating: 20A max. per power contact, 0.8A per signal contact
- Insulation Resistance: 1000MQ MIN.
- Voltage Rating: 100V DC
- Signal Speed: Up to 12Gb/s
- Durability: 200 cycles
- Insertion Force: Max 6N per power contact, 0.9N per signal contact
- Withdrawal Force: Min 0.8N per power contact, 0.1N per signal contact
- Operating Temperature Range: -40°C to +125°C
- Shock and Vibration: USCAR-2 V2 compatible
- Environmental: Humidity 90-96% for 240 hours, High Temp Life: 105°C for 1000 hours

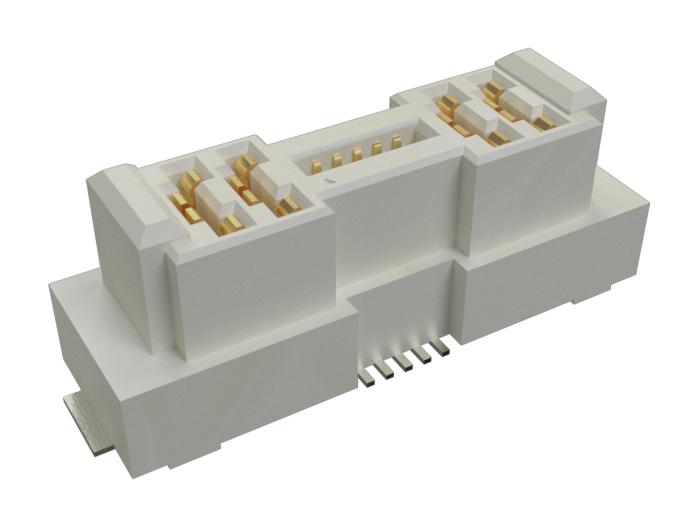

Buy the Amphenol 10159559410221RLF – Reliable PowerStar for Industrial Applications
Discover the high-performance PowerStak and ComboStak connectors for efficient power distribution and signal control in industrial and automotive electronics. These compact, reliable board-to-board connectors support high current up to 20A per blade, signal speeds up to 12Gb/sec, and stack heights from 5mm to 20mm. Crafted from durable high-temperature LCP material, they feature self-alignment and robust contact points, ensuring long-term performance. Ideal for space-constrained environments, these connectors meet environmental safety standards, offering secure and efficient connections for demanding applications.
Buy Amphenol 10159559410221RLF now and experience unmatched reliability and performance with space-saving hybrid power and signal connection solutions.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10159559410221RLF?
You can click on the BUY or RFQ button to purchase 10159559410221RLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10159559410221RLF?
You can download the 10159559410221RLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10159559410221RLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
