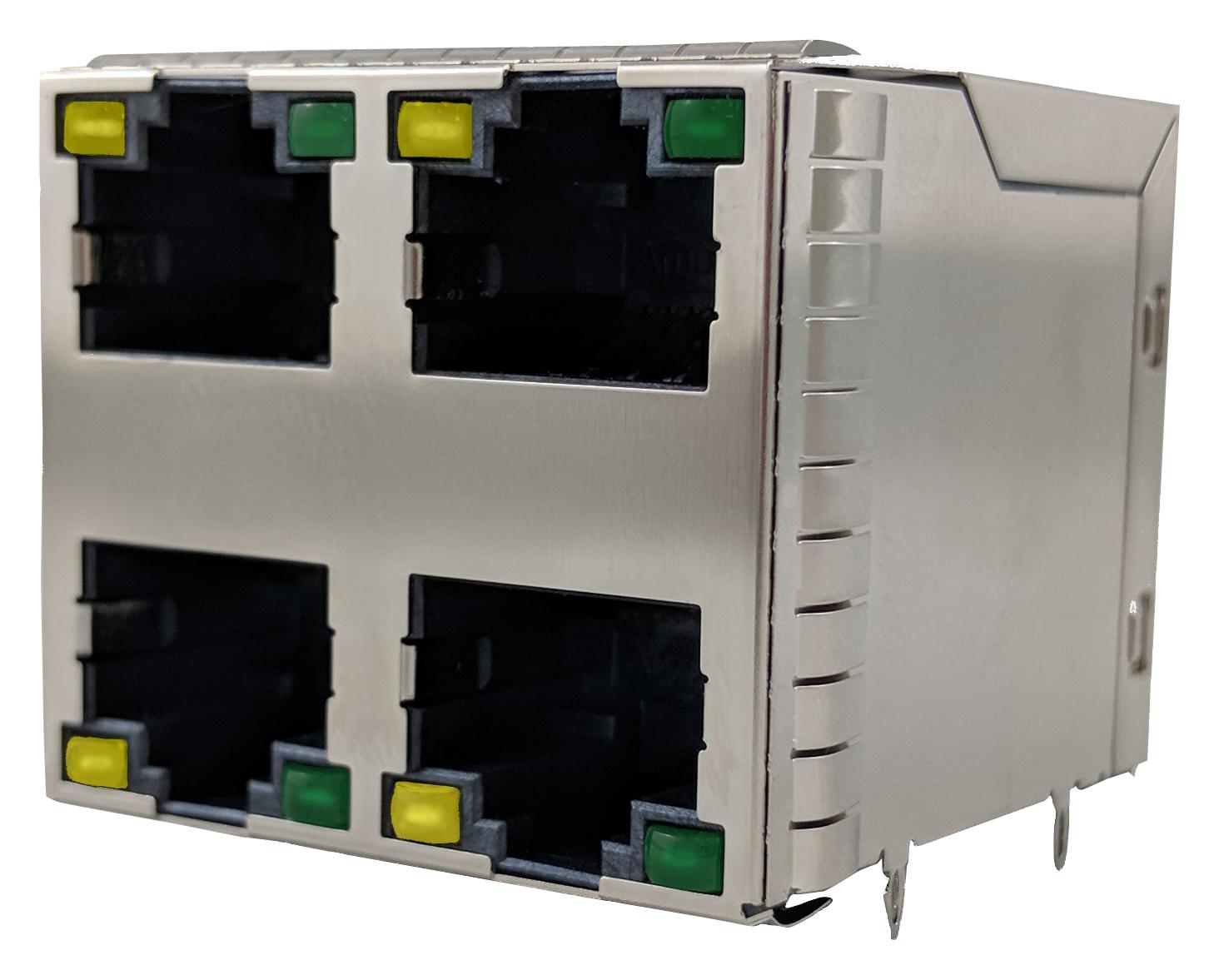

AMPHENOL COMMUNICATIONS SOLUTIONS RJSGE4886411 Ethernet Modular Jack
The RJSGE series is a modular jack designed for high-performance Ethernet connections, supporting Cat5e standards. This four-port, stacked connector features press-fit contacts, eliminating soldering needs for PCB assembly. Available with multiple LED color options, it enhances network diagnostics with bi-color and tri-color LEDs. Made from high-temperature thermoplastic and with gold-plated contacts, it ensures reliable electrical performance and EMI shielding options. Suitable for various network and industrial applications, it supports 1G and 2.5G Ethernet protocols with transmission rates up to 100MHz, ensuring industry-standard connectivity and durability.
AMPHENOL COMMUNICATIONS SOLUTIONS RJSGE4886411 Ethernet Modular Jack Specifications:
- Insulator: High temperature thermoplastic, UL94V-0, Black
- Contacts: Phosphor bronze, gold plated (6u”, 15u”, 30u”, 50u”), nickel on contact area
- Shield: Copper alloy or stainless steel, nickel plated with tin dipped tail
- LED: Pure tin plating, yellow (587nm), green (565nm), red (625nm) with forward voltage up to 2.6V
- Electrical: Contact resistance 20mΩ max, insulation resistance 500MΩ min at 500V DC
- Voltage Rating: 125VAC, DWV 1000VAC, 60Hz for 1 minute
- Current: 1.54A, LED forward current 20mA, wave soldering peak at 260°C for 5 sec
- Mechanical: 750 mating cycles, pull retention force ≥ 20 lbs
- Operating Temp: -55°C to +85°C, suitable for industrial environments
Buy the Buy Amphenol RJSGE Modular Jack Part Number RJSGE-488-6411 Online
Purchase the Amphenol RJSGE-488-6411 Ethernet modular jack online and enjoy reliable high-speed 1G and 2.5G Ethernet connectivity. This four-port, press-fit connector supports Cat5e standards and features a variety of LED options for network status indication. Its durable thermoplastic insulator and gold-plated contacts ensure excellent electrical performance, while EMI shielding options provide enhanced signal integrity. Perfect for industrial, networking, and telecommunications applications, this modular jack offers easy PCB assembly without soldering, making it an ideal choice for efficient system integration and long-lasting network reliability.
Get Amphenol RJSGE-488-6411 today—designed for high-speed Ethernet and industrial network reliability.
