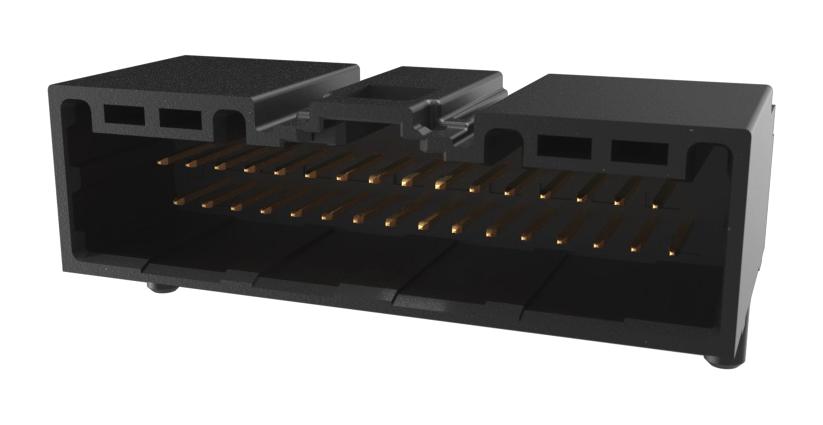

AMPHENOL COMMUNICATIONS SOLUTIONS 10161735V302011LF FPC-to-Board Connector
FlexLock 2.54mm FPC-to-Board connectors are compact, automotive-grade, compatible with USCAR-T2V2 standards, and designed for reliable flexible soldering. These connectors support up to 3A per contact, feature reflow tin plating to reduce mating force, and have terminal and connector position assurance for proper locking and insertion. Suitable for automotive, robotics, and electronic applications, they withstand operating temperatures from -40°C to +105°C, with UV resistant high-temp housing and UL certification, ensuring durability and high performance in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 10161735V302011LF FPC-to-Board Connector Specifications:
- Connector Material: Copper alloy
- Housing: High temperature UL 94V-0
- Plating: Tin plated
- Voltage Rating: 48V AC/DC
- Current Rating: 3A
- Insulation Resistance: 100MQ min.
- Contact Resistance: 25mΩ max. (initial)
- Dielectric Withstand Voltage: 500V AC
- Temperature Range: -40°C to +105°C
- Durability: 10 cycles (tin), 30 cycles (gold)
- Mating / Un-mating Force: 75N max.
- Terminal Insertion Force: <5N per pin
- Terminal Retention Force: 15N min.
- Operating Temperature: -40°C to +105°C
- Certification: UL (ULE66906), GS-12-1679
- Packaging: Tape and reel; Tray for housings
- Application: Battery management, charging, microcontrollers, robotics
Buy the Amphenol 10161735V302011LF – Reliable FPC-to-Board Connectors for Industrial Applications
Enhance your electronic assembly with Amphenol FPC-to-Board connectors, designed for high reliability in automotive, robotics, and industrial applications. Supporting up to 3A per contact, these connectors feature reflow tin plating for reduced mating force, ensuring easy mating and disassembly. Their high-temp UL 94V-0 housing and certifications guarantee durability in demanding environments. Available in various pin counts, these connectors ensure secure connections, proper locking, and high-performance operation, making them essential components for modern electronic systems requiring compact and reliable interconnect solutions.
Buy Amphenol 10161735V302011LF now and experience unmatched reliability and performance in automotive and industrial electronic connections.
