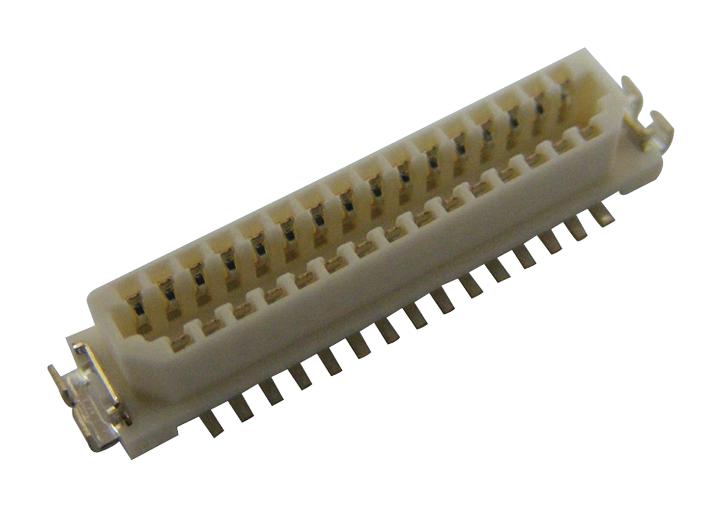

AMPHENOL COMMUNICATIONS SOLUTIONS 9191131311LF Connector System
The Conan 1.00mm Connector System by Amphenol ICC is designed for industrial and harsh environment applications, offering high-speed, secure connections with an audible click. Utilizing gold or GXT finishes, these connectors support up to 5Gb/s data transfer, with a compact right angle or vertical configuration for versatile PCB stacking. Designed for durability with up to 30 mating cycles, they meet environmental standards, ensuring reliable performance in demanding settings, making them ideal for networking, medical, M2M, and security equipment requiring precise, secure, and high-speed interconnections.
AMPHENOL COMMUNICATIONS SOLUTIONS 9191131311LF Connector System Specifications:
- Material: Header - Phosphor Bronze, Receptacle - Copper Alloy, Housing - Cream-colored LCP (UL94V-0)
- Finish: Contact Area - Gold or GXT®, Solder Tail Area - Pure Tin over Nickel
- Mating Force: 125g per contact max, Unmating Force: 25g per contact min
- Retention Force: 44N min, Contact Wipe: 0.64mm, Durability: 30 mating cycles
- Electrical: Insulation Resistance - 1000MQ min, Contact Resistance - 30MQ max
- Withstanding Voltage: 600V RMS, Current Rating: 1.0A per contact, Impedance: 100Q +/-10 @ 50 ps edge
- Insertion Loss: <1.5dB up to 5GHz, NEXT: <3.5%, FEXT: <2.5%
- Environmental: EIA 364-65 class 2a, High Temp Life: 105°C, Packaging: Tape & reel or tubes
- Connector dimensions: Width 5.59mm, Height varies with configuration, designed for high-speed data transmission and secure PCB stacking
Buy the Buy Amphenol Conan 1.00mm Connectors Part Number 9191131311LF Online
Enhance your electronic assemblies with the Conan 1.00mm Connector System from Amphenol ICC. Designed for demanding industrial and harsh environment applications, it offers secure, high-speed data transfer up to 5Gb/s, with durable materials and a compact design. Easy to assemble, these connectors feature audible clicks for secure mating and support a variety of configurations including vertical and right angle headers with multiple pin counts. Perfect for networking, medical, and M2M markets, buy online today for reliable, robust interconnect solutions.
Get Amphenol Conan 1.00mm Connector System today—built for high-speed, secure connections in industrial environments and reliable performance under harsh conditions.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 9191131311LF?
You can click on the BUY or RFQ button to purchase 9191131311LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 9191131311LF?
You can download the 9191131311LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 9191131311LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
