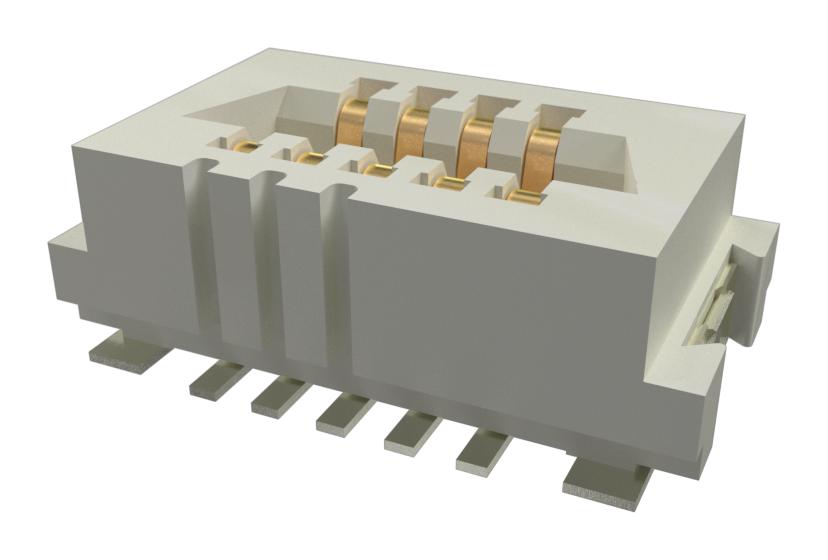

AMPHENOL COMMUNICATIONS SOLUTIONS 101625813134109LF board-to-board connector
The Conan Lite 1.00mm Connector set offers a secure, high-speed, and reliable board-to-board solution suitable for various electronic applications. With a robust metal down feature and an audible click for proper mating, these connectors support high-speed data transmission up to 8Gb/s, auto reflow compatibility, and reliable connections in parallel and perpendicular configurations. Made with high-temperature thermoplastic and copper alloy contacts, they withstand temperatures from -55°C to +125°C, ensuring durability and performance in demanding environments. Suitable for LED reading lights, electronic control units, and server applications, these connectors come in multiple positions and mating heights for versatile use.
AMPHENOL COMMUNICATIONS SOLUTIONS 101625813134109LF board-to-board connector Specifications:
- Housing: High-temperature thermoplastic LCP
- Terminal Base Material: Copper alloy
- Plating: Gold flash on contact area
- Current Rating: 1.0A continuous
- Contact Resistance: 30mΩ max.
- Withstanding Voltage: 500V AC RMS 60Hz
- Durability: 30 cycles
- Mating Force: 125g per contact max.
- Un-mating Force: 35g per contact min.
- Operating Temperature Range: -55°C to +125°C
- Product Specification: GS-12-0977
Buy the Amphenol 101625813134109LF – Reliable Board-to-Board Connectors for Industrial Applications
Purchase the Amphenol 101625813134109LF board-to-board connector online today and ensure a secure, high-speed connection for your electronic devices. These connectors support data rates up to 8Gb/s, feature gold-plated contacts for reliable performance, and are made with high-temperature thermoplastic to withstand extreme environments. Designed for versatility, they suit LED lighting, control units, and servers. Available in various positions and heights, they ensure easy and correct PCB orientation, auto reflow compatibility, and long-lasting durability for professional electronic applications. Order now for dependable performance.
Get Amphenol 101625813134109LF today—built for high-speed data transmission and durable electronic connections.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 101625813134109LF?
You can click on the BUY or RFQ button to purchase 101625813134109LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 101625813134109LF?
You can download the 101625813134109LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 101625813134109LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
